Ultrasonic ipele mita

Q&T Irinse

Ọrọ Iṣaaju

Ohun elo

Imọ Data

Iyaworan

Ọrọ Iṣaaju

Igbohunsafẹfẹ modulated lemọlemọfún igbi (FMCW) ti wa ni gba fun Reda ipele irinse (80G). Eriali n ṣe atagba igbohunsafẹfẹ giga ati ifihan agbara radar ti a yipada.
Awọn igbohunsafẹfẹ ti awọn Reda ifihan agbara laini posi. ifihan agbara radar ti a firanṣẹ jẹ afihan nipasẹ dielectric lati ṣe iwọn ati gba nipasẹ eriali. ni akoko kanna, iyatọ laarin igbohunsafẹfẹ ti ifihan agbara ti a firanṣẹ ati ti ifihan ifihan ti o gba ni ibamu si ijinna ti wọn.
Nitorinaa, ijinna naa jẹ iṣiro nipasẹ iwoye ti o wa lati iyatọ igbohunsafẹfẹ iyipada afọwọṣe-si-nọmba oni-nọmba ati iyipada mẹrin ti o yara (FFT)

Awọn anfani

(1) Da lori chirún ipo igbohunsafẹfẹ redio ti ara-veloped milimita-igbi lati ṣaṣeyọri faaji igbohunsafẹfẹ redio iwapọ diẹ sii.
(2) Iwọn ifihan-si-ariwo ti o ga julọ, ti o fẹrẹ jẹ aifọwọkan nipasẹ awọn iyipada ipele.
(3) Iwọn wiwọn jẹ deede ipele millimeter (1mm), eyiti o le ṣee lo fun wiwọn ipele metrology.
(4) Agbegbe afọju wiwọn jẹ kekere, ati ipa ti wiwọn efa liguid ti awọn tanki ipamọ kekere dara julọ.
(5) Igun tan ina le de ọdọ 3 ati pe agbara wa ni idojukọ diẹ sii, ni imunadoko yago fun kikọlu iwoyi eke.
(6) Ifihan agbara igbohunsafẹfẹ giga, le ṣe iwọn ipele ti alabọde ni imunadoko pẹlu ibakan dielectric kekere (e> 1.5).
(7) Eriali naa gba lẹnsi PTFE, eyiti o jẹ egboogi-ipata ti o munadoko ati ohun elo adiye.

Ohun elo

Ṣe iwọn ipele ti awọn patikulu to lagbara, ojò omi kemikali, ojò epo ati awọn apoti ilana.
1.Radar ipele mita ti wa ni sise da lori itanna igbi. Nitorinaa o le ni iwọn iwọn 120m max.
2.Compared with other type level meters, 80G radar level mita le wiwọn orisirisi iru epo, kemikali olomi, ri to lulú, ati ọpọlọpọ awọn miiran mediums.
3. Mita ipele radar 80G le ṣiṣẹ ni ipo iṣẹ lile. Kii yoo ni ipa nipasẹ iwọn otutu, titẹ ati ọriniinitutu. Pẹlu iwo PTFE, paapaa le ṣiṣẹ ni ipo ibajẹ, gẹgẹbi omi acid.
4.Customer tun le yan awọn ọna asopọ oriṣiriṣi, gẹgẹbi flange, o tẹle ara, akọmọ.

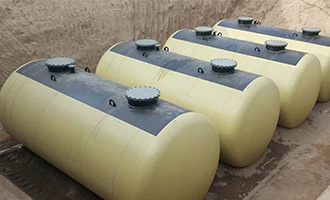

Epo epo

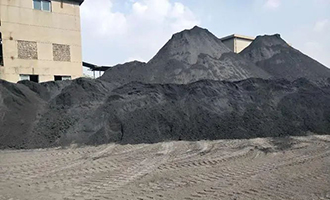

Mi lulú

Odò

Ẹgbẹ okun

Ẹgbẹ Lake

Awọn patikulu ri to

Imọ Data

Table 1: Imọ paramita

Aworan
Awoṣe	QTRD-81	QTRD-82	QTRD-83	QTRD-84	QTRD-85	QTRD-86	QTRD-87
Ohun elo	Díẹ̀ apanirun omi, saropo, condensation	Díẹ̀ apanirun omi, saropo, condensation	Eruku ti o lagbara, Ri to, Dina, Powder	Alagbara apanirun omi, saropo, condensation	Ga otutu, lagbara omi bibajẹ, saropo, condensation	Alagbara apanirun omi, saropo, condensation	Ga iwọn otutu ati giga omi titẹ ati ri to
Ilana Asopọmọra	1.5 "Oro, Flange	3.5 "Oro, Flange	Flange pẹlu purging	Flange	Flange	Flange	Flange
Standard Ilana Iwọn otutu	-30~+100℃	-30~+80℃	-30~+100℃	-30~+75℃	-40~+200℃	-30~100℃	-40~ +1000℃
Ipa ilana	-0.1 ~ 0.3 MPA	-0.1 ~ 0.3 MPA	-0.1 ~ 0.3 MPA	-0.1 ~ 0.1 MPA	-0.3 ~ 2 MPA	-0.1 ~ 2 MPA	-0.5 ~ 3 MPA
Igun tan ina	8°	3°	3°	5°	5°	8°	3°
Iwọn Iwọn	10m, 20m, 30m	10m, 20m, 30m, 80m, 120m	10m, 20m, 30m, 80m, 120m	10m, 20m, 30m, 80m, 120m	10m, 20m, 30m, 80m, 120m	10m, 20m, 30m	10m, 20m, 30m, 80m, 120m
Yiye	± 1 mm (≤30mm) ± 3 mm (≥30mm)		± 5 mm	± 1 mm (≤30mm), ± 3 mm (≥30mm)
Ipinnu	± 1mm (Labẹ ipo yàrá ti o dara julọ)
Awọn ẹya tutu	PTFE						Erogba irin, SS304, SS316
Agbegbe afọju	0.15m fun 35m, 0.4m fun 85m, 0.6m fun 120m
Igbohunsafẹfẹ	76 ~ 81GHz, FM gbigbọn igbohunsafẹfẹ iwọn 5GHz
Ibaramu Iwọn otutu	-30~+70℃
Ohun elo ikarahun	Aluminiomu simẹnti, SS304, SS316
Ibi ti ina elekitiriki ti nwa	18 ~ 28 VDC, 85 ~ 865 VAC
Ijade ifihan agbara	Waya meji / onirin mẹrin 4 ~ 20mA, HART / RS485 Modbus / Bluetooth
Olupilẹṣẹ	Iwapọ, latọna jijin
Ex-ẹri	Ex d IIC T6 Gb iyan
Dabobo ite	IP67
Ede	English, Spanish, Russian, Portuguese, Korean

Table 2: Awoṣe Yiyan

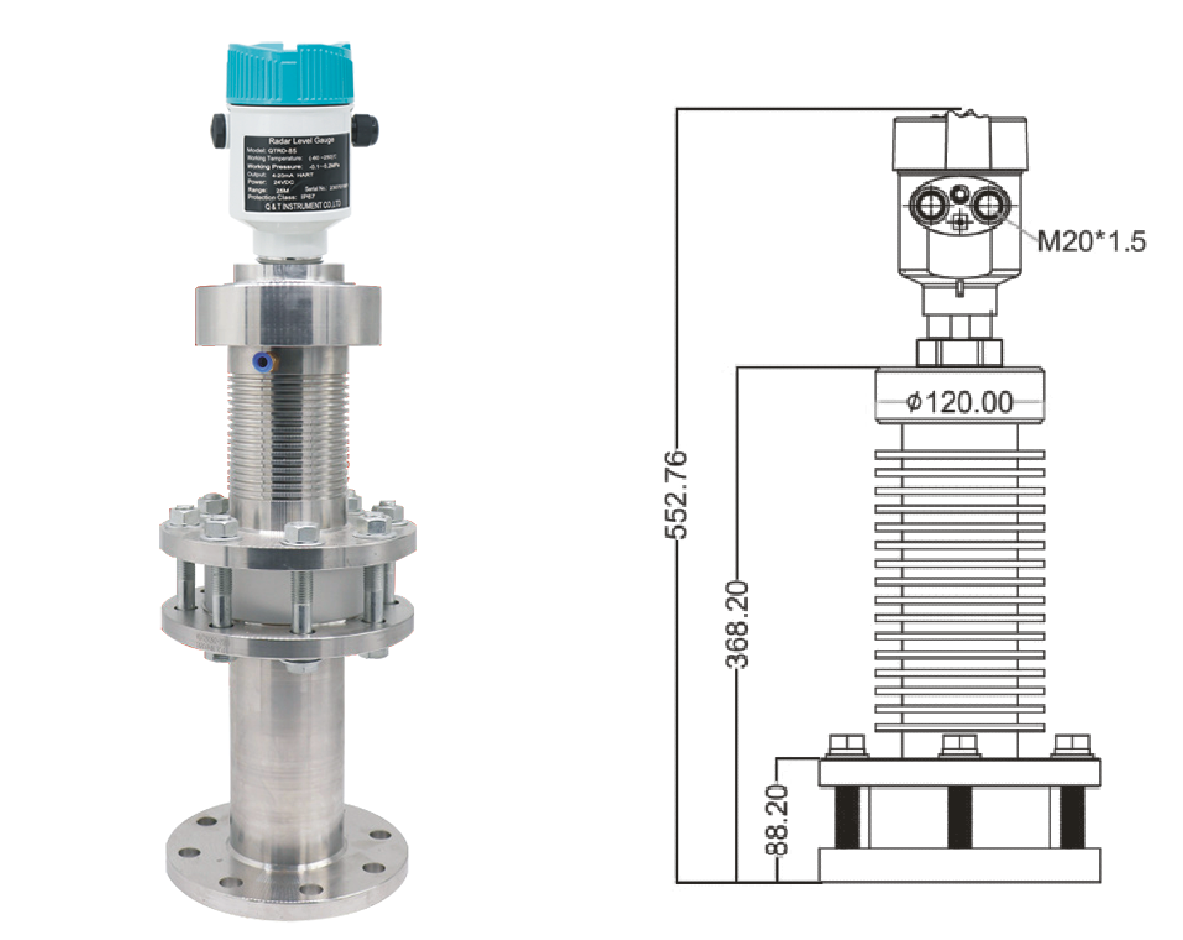

Iyaworan

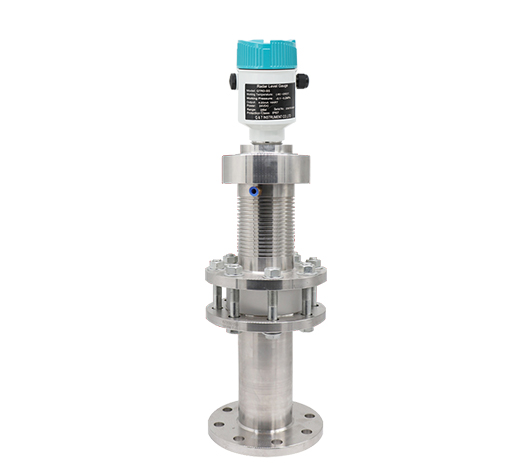

QTRD-87 80G Reda Ipele Mita

Table 1: Imọ paramita
