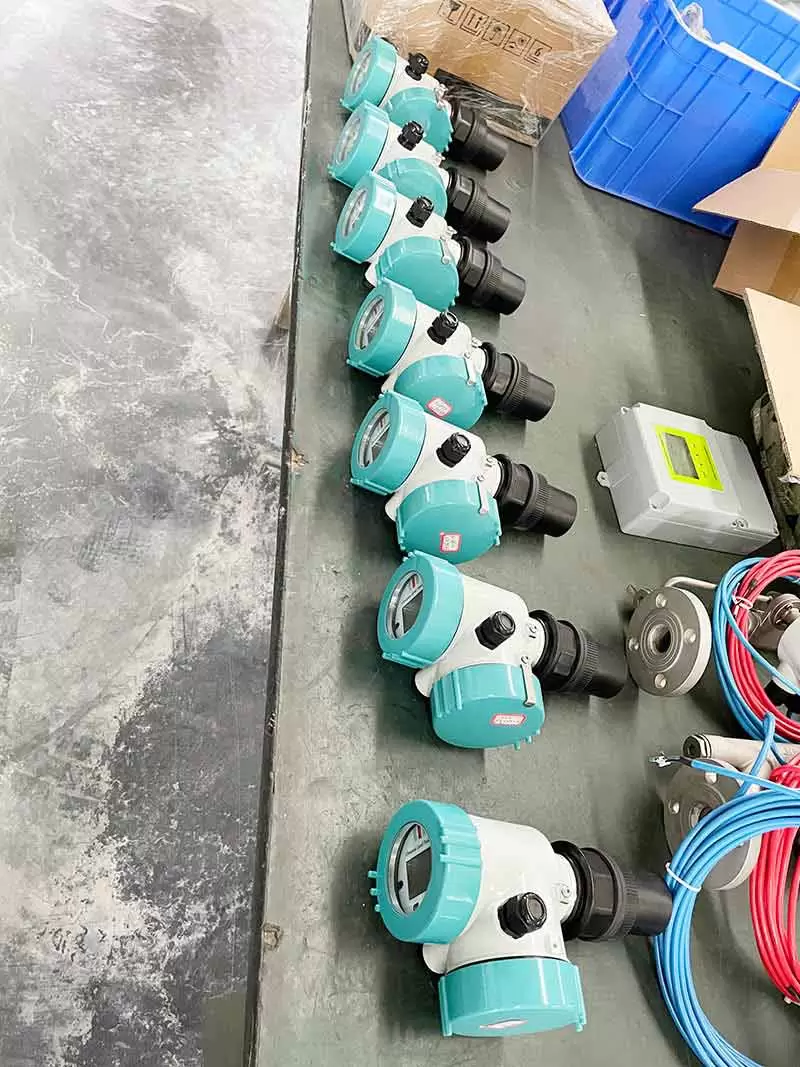

Analog ultrasonic level sensor

QTLM ultrasonic level sensor emits ultrasonic pulses in the direction of the medium,which support various connections like thread or flange connection type which is much easier for user.QTLM series Ultrasonic level transmitter have full-screen self-illumination,easy setting and debugging of liquid level measurement, support 4-20mA two wire output, which is widely used in water, fuel tank, food tank, solid level application.
Level Range:4-30m
Sensor:ABS/PVC/PTFE
Output: 4-20mA/HART
Power:DC24V
Accuracy:0.5%

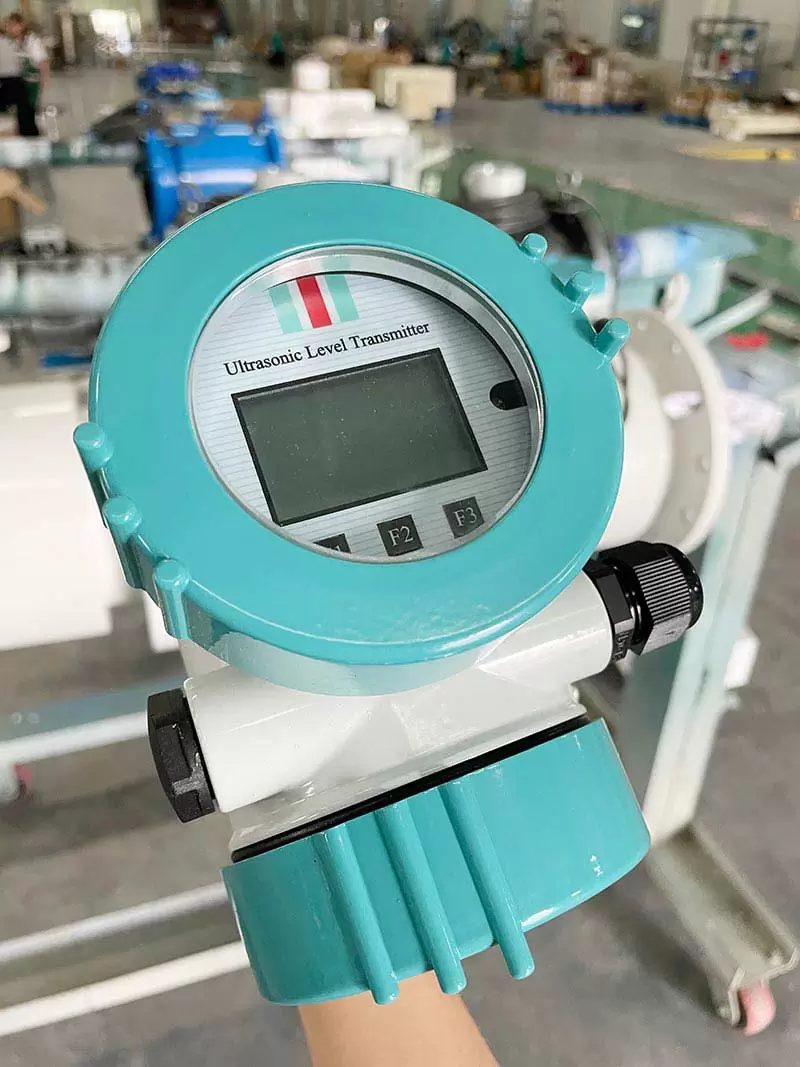

QTLM series Ultrasonic level meter the range of applications extends from monitoring levels in sewage treatment plants and process water tanks to applications for loading, storage and buffer tanks,the sensor emits the ultrasonic wave to measure the distance by measuring the time between the wave emission and reception. QTLM series Ultrasonic level meter offers proven software algorithms and all warning and alarm messages are shown on the four-line plain text display and guarantee fast remedy of problems. The envelope curve can also be shown on the display. As the analysis results are displayed directly on-site, this ensures quick and accurate error diagnostics.
Level Range:4-30m
Sensor:ABS/PVC/PTFE
Output: 4-20mA/HART
Power:DC24V
Accuracy:0.5%
