Stainless steel HART output mag flowmeter battery

Battery operated magnetic flow meter satisfy water fee calculation with high accuracy, battery flow meter is widely used in applications without power supply, can work with solar power supply. Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard), IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard),1.5W(with DC24V);

The Magnetic Flow Meter has bidirectional measuring system and is installed with three totalizers: forward total volume, reverse total volume and total difference; This digital water flow meter can display forward flow and reverse flow volume, and has multiple outputs: current, pulse, digital communication Modbus, HART etc

Specifications:
Accuracy: 0.20%，0.10%
Medium Temperature: -50…200℃
Nominal pressure: 0…4.0MPa
Material : Measuring tube SS316L; Housing: SS304
Process Connection: Flange, Tri-clamp Connection, Thread
Power supply: 24V DC±5% or 220V AC ± 10% 50Hz
Working condition: Ambient temperature: – 20~60℃
Relative humidity: ≤95%
Protection Grade: IP67
Instrument display: mass flow, volume flow, density, temperature

Electromagnetic flow meter battery powered make IP68 protection, battery powered electromagnetic flow meter could put under water for long time, flow meter could add external DC12-24V power. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM (Optional);

Q&T Instrument is OEM for European and American clients for
magnetic flow meter. color, logo and company name can be customized. Pulse width of electromagnetic flow meter can be customized, standard cable is 10m, max length is 120m, electromagnetic flow meter is mainly used to measure beverage. liner can be PTFE or rubber, our magnetic flow meter have been approved CE-LVD, CE-EMC, ATEX, NSF, tec. it can mag flowmeter is calibrationed 5 points.

Accuracy: ¡À0.5%
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s

Battery powered electromagnetic flow meter enjoy good accuracy with ¡À0.5%, Battery powered magnetic flow meter provides with 3-5 years continuous battery operation. Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ; Ambient Temperature: -20¡æ~+60¡æ; Ambient Humidity: 5-100%RH (relative humidity);

Q&T series electromagnetic flow meter with LCD Display,Human-Computer Interaction.Easy to Use,Simplicity of Operation,easy learning and applying.
Efficient Intelligent Computing,Using 16 – Bit Embedded Microprocessor,Fast Operation Speed.Low Frequency Rectangular Wave Excitation with Programmable Frequency.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Magnetic inductive flow meter is made by the flow transmitter and flow sensor; it is a kind of volumetric flow meter to detect liquid flow rate in a closed pipelines, and has no moving parts inside mag sensor, so little maintenance work is needed. The good point of inductive flow meter is that it can measure dirty liquid even will solids inside, such as slurry, grease, mud, also the .flow rate measurement is not affected by the liquid properties, such as temperature, viscosity ,and density.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304

This electromagnetic wastewater flow meter has the features of no moving parts, which reduced the maintenance and repair with an obstructionless design. Alignment rings are available to install easily. and this magnetic flow meter Support data record / bluetooth / wireless communication

Specifications:
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis
Support data record / bluetooth / wireless communication

Battery power electromagnetic flow meter used in process measurement and control, leak detection, etc.Insertion Battery Magnetic flow meter usually for large diameter above DN100 and save cost. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner:PTFE,Neoprene,Hard Rubber,EPDM,FEP,Polyurethane, PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Battery power electromagnetic flow meter with IP68 protection, Battery power magnetic flow meter workable under water for few days, flow meter can add external 12-24 VDC power supply with 4-20mA. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) :-10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP): -10¡æ~+160¡æ; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional), HART(Optional), GPRS/GSM (Optional);

slurry version electromagnetic flow meters Electromagnetic flowmeter consists of sensors and converters in two parts. The product is based on Faraday’s law of electromagnetic induction, used to measure the conductance greater than 20 μS / cm
● Power Supply : AC85~250V, DC20V~36V
● Power Consumption :<20W ● Communication : RS485/Modbus,Hart,Profitbus ● Display : LC Display,128X128mm Three lines 4 internal push buttons ● Ambient Temperature:-20℃~60℃ ● Relative Humidity : 5%~95% ● Liner Material :Neoprene(Rubber) PTFE PFA F46 Polyurethane ) ● Velocity : 0.1 m/s ~ 15 m/s ● Explosion-proof : Exd IIB T6 Gb ● Nominal Pressure : 4.0 MPa (DN3-DN150)

Display of mag flowmeter is LCD, OLED is optional, liner is PTFE or Neorpene, agnetic flow meters (also known as magmeter or electromagnetic flow meters) are cost effective volumetric flow meters that do not have any moving parts. Q&T Instrument was established in 2005, products including mag flowmeter, turbine flow meter, ultrasonic flow meter, thermal mass flow meter, etc. We offer flowmeters with a range of liners, electrodes, and sizes, which can meet various conductive liquids.

Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse

magnetic flow meter is calibrated on ¡À0.2% accuracy liquid test bench, mag flowmeter is calibrationed 5 points. Electromagnetic flowmeters are volumetric flow meters which do not have any moving parts. This lack of moving parts reduces the need for maintenance or replacement. Our mag flow meters have an accuracy over a wide flow range that can often exceed ¡À 0.5% of flow rate. Our MAG flow meters are ideal for liquids.

Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

Q&T series easily accessible transmitter offers high flexibility for operation and system integration. The transmitter features access from one side, a remote display, and improved connectivity options.Q&T series electramanetic flow meter have also been integrated with series of communication protocols i.e. RS485, RS232, HART and MODBUS.

Size:DN3-3000mm
Material:Carbon Steel SS304 S316
Dual Power:24V/220V
Nominal Pressure: 0.6-1.6Mpa(Max 42Mpa)
Accuracy: +/-0.5%(Standard)0.2% (Optional)
Liner: PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA
Electrode Material:SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium
Output Signal: 4-20mA/Pulse
Ambient Temperature:-20~+60deg C

Battery powered electromagnetic flow meter satisfy urban water supply to ensure accurate water fee calculation,Battery powered magnetic flow meter is widely used in no power supply region. Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard), IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard),1.5W(with DC24V);

The insertion magnetic flowmeter is remote type with 10m cable, mainly used to large pipeline, it can be install with pressure. insertion mag flowmeter is used to measure the flow of conductive liquids. insertion magmeter, which allows sensor to be installed and retracted from process piping without shutting down the process. size is from 4″~240″

Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

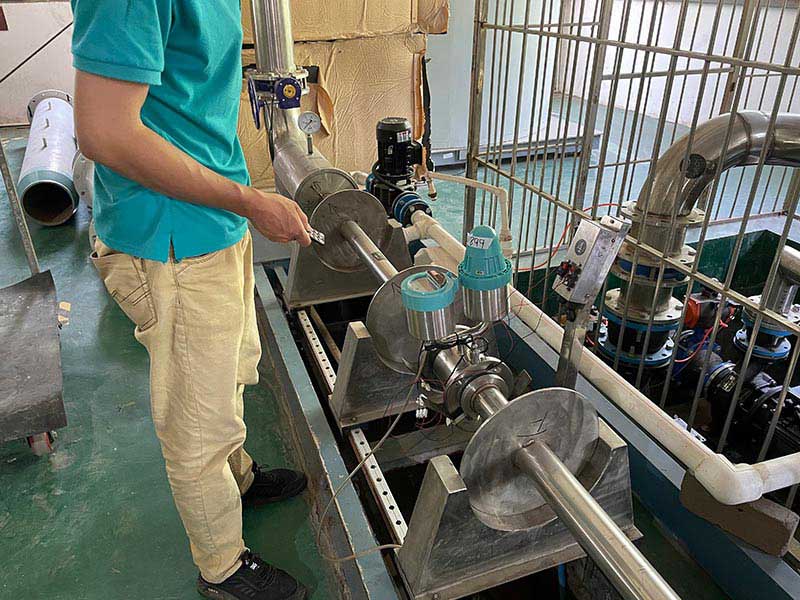

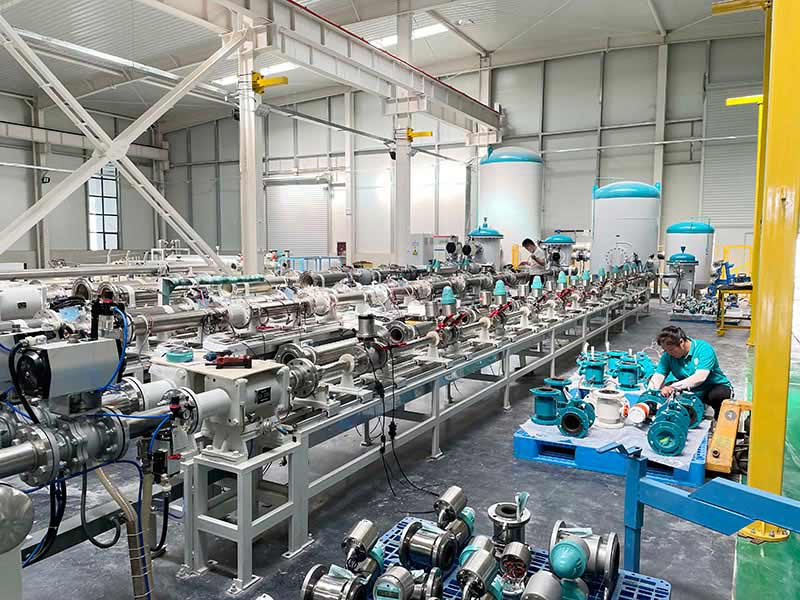

Q&T have 8 sets test bench for liquids and 5 sets calibration equipments for gas. our calibration lab has been approved CNAS ISO/IEC 17025:2017. we use mass method, pulse or comparison method to calibrate, each flow meter have calibration certificate together with goods. 5 points are calibrated for magnetic flowmeter.
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

QTLD magnetic flow meters have been approved CE and Atex certificate, explosion proof are optional. Size can be DN3-DN3000, water flowmeter can be calibrated according to CNAS ISO/IEC 17025:2017, which is recongition by ILAC-MAR.
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm

Self-diagnosis fault alarm
GSM data infinitely transmitted
LCD display cumulative flow£¬instanta-
neous flow£¬ flow rate,flow percentage,etc.

DC3.6V powered mag flow meter service life with 5 years, battery flowmeter fulfills the special customer demands to water application with distribution network as well as irrigation. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Measuring Range: Max 15m/s; Conductivity: >5us/cm; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional);

Q&T series electromagnetic flowmeter is suitable for measuring almost all electrically conductive liquids, as well as the flow measurement of mud, paste and mud. The premise is that the measured medium must have at least some minimum conductivity. Temperature, pressure, viscosity and density have no effect on the measurement results.it’s very economical and practical.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Q&T series electromagnetic flow meters sensor and transmitter integrity check utilizing fingerprint technology . Verify the installation is correct from day one and Receive timed notifications. Protect your investment in Q&T flowmetering. Q&T Series nominal diameter DN3-DN3000. There are many options for sensor liner and electrode materials.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Q&T insertion magnetic flow meter with no moving parts is designed to measure the flow velocity of conductive liquids in large diameter pipes. The insertion type is cost-effective compared with in line magmeters for large diameter pipes.

Specifications:
Size: 4″-120″
Accuracy: ±1.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.5~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

Electromagnetic water meters are often selected because they are obstructionless, cost-effective for aggressive chemicals,slurries,wastewater applications or any dirty liquid which is conductive or water based and provide highly accurate volumetric flow measurement
Standard application products of water treatment industry
Nominal diameter range: DN5~DN2600
Degree of protection can reach IP68
Application suitability – buried or installed underwater
ANSI, DIN, JIS flange are available

magnetic flow meter’s accuracy is ¡À0.5% standard, ¡À0.2% is optional, liquid flow meter is calibrated on ¡À0.2% accuracy test bench, mag flowmeter is calibrationed 5 points by comparison method or mass method. liquid flow meter inluding inserted flow and compact electromagnetic flow meter, vortex flow meter, metal tube rotameter, ultrasonic flow meter.

Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Electromagnetic water meter is a high performance, high reliability flowmeter for measuring the volumetric flow of conductive liquids and slurries in closed conduits. Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy, Papermaking, water supply and drainage, food, medicine and other industries
1) Measurement is not affected by the variation of flow density, viscosity, temperature, pressure.
2) High accuracy measurement is guaranteed according to the linear measurement principle.
3) No moving in the pipe, no pressure-loss and lower requirement for straight pipeline.

flange electromagnetic flow meter has multi-choice in electrodes and liner material, High and low alarm, empty pipe alarm, self-diagnosis
Three built-in totalizers: forward flow, reverse flow and net flow.
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Q&T series magneric flow meter is one of the most flexible and unversally applicable flow measurement
systems available. It is volumtric flow meter which does not have any moving parts and is ideal for
waste water applications or any dirty liquid which is conductive or waste based. Q&T series Magnetic flow meter
is also ideal for the applications where low meter is also ideal for the applications where low pressure
drop and low maintrnance are reequired.

Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

There are no moving parts and no choke parts in the pipeline, and there is almost no additional pressure loss in the measurement. The measurement result has nothing to do with physical parameters such as velocity distribution, fluid pressure, temperature, density, viscosity, etc.
High-quality ABS, backlit LCD simultaneously displays
instantaneous flow and accumulated flow, instantaneous heat andaccumulated heat, flow rate, time and other data non-contactmeasurement, accurate measurement

Battery powered electromagnetic flow meter enjoys IP68 protection, Battery powered magnetic flow meter workable under water, flow meter can add external 12-24 V DC power supply. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) :-10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP): -10¡æ~+160¡æ; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional), HART(Optional), GPRS/GSM (Optional);
