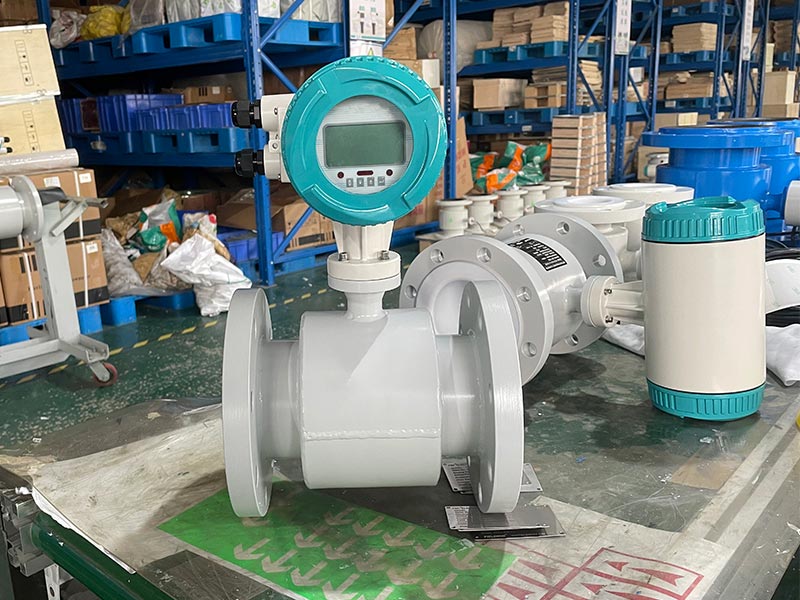

RS485 syrup water meter magnetic battery powered electromagnetic water meter

Q&T series electromagnetic flow meter can be used to measure the volume flow of conductive fluid in a closed pipeline. It is widely applied in the flow measurement and control in the fields of chemical and petroleum industry, metallurgy industry, water and waste water, agriculture and irrigation, paper making, food and beverage industry and pharmaceutical industry.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Electromagnetic water meter has excellent accuracy and flow rangeability. The meter is suitable for use on wide range of corrosive and aggressive range of conductive liquids.
1) Full-digital processing, high noise resistance and reliable measurement;
2) Flow measurement range up to R400
3) High definition LCD display with backlight.
4) RS485 and Wireless Function

Battery powered magnetic flowmeter satisfy water fee calculation with high accuracy, Battery powered mag flowmeter is widely used in applications without power grid, can work with solar power supply. Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard), IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard),1.5W(with DC24V);

Q&T Instrument has large stock for varous flanges for different electromagnetic flowmeter, like DIN, ANSI, JIS, etc. PTFE, neoprene liner and other liners are optional, Liner of mag flowmeter has been approved NSF or FDA certificate. it can be used to measure driing water. it has function of high and low alarm, empty alarm, excitation alarm, etc.

Size: DN3-DN3000
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

GSM/GPRS remote monitoring management software system can query, count, analyze and display the water usage of each measuring point in the form of graphs or curves.

Electromagnetic water meter GSM/GPRS remote monitoring management topology diagram 4. This system introduces more humanized management such as data backup, SIM card cost statistics and so on.

Battery powered electromagnetic flowmeter special for the area without AC220V/DC24V power supply, battery mag flowmeter transfer and monitor data via 4-20mA, pulse, RS485, GPRS. Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa);
Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional);
Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA;
Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium;
Structure: Integral,remote,submersible,ex-proof;
Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ;
Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ;
Ambient Temperature: -20¡æ~+60¡æ;

Electromagnetic flow meter battery’s service life with 3-5 years, battery mag flowmeter fulfills the special customer demands to water application with distribution network as well as irrigation. Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Measuring Range: Max 15m/s; Conductivity: >5us/cm; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional);

hot products Partial Filled Pipe Flow Meter Sewage flow meters for water treatment is composed of converter, flow sensor and level sensor. The user only needs to
enter the diameter of pipe, the non-full pipe flowmeter will automatically calculate the flow rate, and automatically
display the instantaneous flow, total flow, velocity, height, etc. It can measure liquid volume min 10% of full pipe. It is
especially suitable for the needs of municipal rainwater, waste water, sewage discharge and irrigation

Electromagnetic water meter is used to mea-sure the flow of conductive fluid in watersupply,steel£¬petroleum,chemical industry,electric power£¬industry£¬water conservancyand other departments£¬as well as acid,alkali,salt and other corrosive conductiveliquid
Easy Setup
Minimal Straight Pipe
Forward or Reverse flow and Total
IP65,IP67 ,IP68 Rated (optional)
Virtually No Pressure Loss

water flow meter, also known as electromagnetic flowmeter or mag meter, is widely used because less obstruction, cost-effective and accurate measurement. liquid flow meter don’t have any moving parts to wear down, reducing the need for maintenance or replacement. water flow meter is calibrated by Mass Method liquid calibration equipment, which is approved by CNAS ISO 17025, which is mutual recognition by ilac-MRA.

Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote

The electromagnetic flowmeter is suitable for measuring almost all electrically conductive liquids, as well as the flow measurement of mud, paste and mud. The premise is that the measured medium must have at least some minimum conductivity. Temperature, pressure, viscosity and density have no effect on the measurement results.
It can also be used to measure corrosive media as long as the proper pipe lining material and electrode material are selected. Solid particles in the medium will not affect the measurement results.
The flow sensor and the intelligent converter form a complete flow meter integrally or separately.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.

Electromagnetic water meter is of high reliability without lining in the measuring pipe .
The wide range of the nominal bore is suitable for all the pipe size between DN50 and DN300.

3.6V battery powered magnetic flow meter enjoy good accuracy with ¡À0.5%, 3.6V battery powered mag flow meter provides with 3-5 years continuous battery operation. Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ; Ambient Temperature: -20¡æ~+60¡æ; Ambient Humidity: 5-100%RH (relative humidity);

inline magnetic flow meter also known as electromagnetic flow meter or mag meter, is widely used because less obstruction, cost-effective and accurate measurement. Only the pulsation frequency is much lower than the excitation frequency. The meter output is essentially linear. It is easy to choose the type of material in contact with the fluid, which can be used for aggressive fluids.

Size: 1/8″-120″
Electrode: SUS316L, Hastelloy B, Hastelloy C
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

Remote communication with this magnetic flow meter battery can be achieved via a base-station-type radio communication network system.Battery powered mag flowmeter battery enjoy 3-5 years life. Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard), 1.5W(with DC24V); Explosion Proof: ATEX

This in line electromagnetic flow meter has a pretty good level of accuracy and can be up to 0.2% for certain models. Named inline electromagnetic water meter flowmeter because the installation method is done by cutting the pipe followed by installing a flange or thread. The connection directly welded to the pipe or clamped.

Specifications:
Size: DN3-DN3000
Accuracy: ±0.5%; ±0.2%;
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s

electromagnetic flowmeter can be integrated type and split type, standard cable length is 10m and max cable length is 120m. it can be submerged in the water. QTLD magnetic flowmeter can be customized color and logo, we are OEM for some Europmean and Amercial brands.
Size: 1/8″-120″
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Measuring tube: SS304

QTLD magnetic flowmeter, also known as electromagnetic flow meter or mag meter, is widely used because less obstruction, cost-effective and accurate measurement. Electromagnetic flow meter don’t have any moving parts to wear down, reducing the need for maintenance or replacement. We offer flowmeters with a range of liners, electrodes, and sizes, which can meet various conductive liquids.

Accuracy: ¡À0.5%
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s

Battery-powered magnetic water meter can be used in remote area where don¡¯t have power grid . It is widely used for all conductive liquids in every industry, such as water, acid, alkali, milk, slurry etc.
LCD display with multiple FlowUnits Selectable ‘Flow Only’¡®Flow + Pressure”Flow +Temperature.
Digital Signal Processing,Stablemeasurement,High Accuracy,Strong Anti-interference Capability

magnetic flow meter (mag flow meter) is a volumetric flow meter. Electromagnetic Flow Meters do not have any moving parts. Magnetic flow meter is ideal for any dirty liquid which is conductive or water based, like: wastewater applications. Where low-pressure drop and low maintenance are required, Magnetic flowmeters are also idel.
Magnetic flow meters are often selected and specified for applications, because they are obstruction-less, cost-effective for aggressive chemicals and slurries. Magnetic flow meters provide highly accurate volumetric flow measurement. Accuracy over a wide flow range can be as good as ± 0.5% of flow rate or better. Magnetic flow meters can be compact type, remote type, and insertion type. A wide range of liner materials, electrode options, and line sizes accommodate a wide variety of process application
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.

Electromagnetic water meter is widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy,Papermaking, water supply and drainage, food, medicine and other industries.

With simple structure ,the flow meter is of high reliability without lining in the measuring pipe .
The wide range of the nominal bore is suitable for all the pipe size between DN50 and DN300.

Application: Outdoor,underground.Especially
Without power supply places.
Battery Powered: 3.6V lithium battery
Communication Interface:RS485
Wireless Communication:GSM¡¢GPRS¡¢CDMAProtection:IP68

Q&T’s magnetic flowmeter battery each set will have well calibrated before leave factory, mag flow meter battery adopt pulse calibration, with weighing method, guarantee the 0.5% accuracy. Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP,Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium; Ambient Temperature: -20¡æ~+ 60¡æ; Ambient Humidity: 5-100% RH (relative humidity); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA/pulse (optional);

Electromagnetic flowmeters are volumetric flow meters which do not have any moving parts. This lack of moving parts reduces the need for maintenance or replacement. Our mag flow meters have an accuracy over a wide flow range that can often exceed ¡À 0.5% of flow rate. Our MAG flow meters are ideal for liquids. They ship from stock and are configured for you. In-stock and at prices that beats our competition. We have 17 years manufacturing expericen, can meet variouls requirement on flow measurement.

Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

magnetic flowmeter will be tested by pressure equipment. QTLD waste water flow meter is calibrated by ISO/IEC 17025:2016 CNAS Approved liquid flow meter is installed in the chemical plant to measure waste water, the pipe is PVC, so we configure grounding rings to have better grounding to protect the electromagnetic flow meter.

Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

Battery power electromagnetic flowmeter service life with 5 years, battery flowmeter fulfills the special customer demands to water application with distribution network as well as irrigation. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Measuring Range: Max 15m/s; Conductivity: >5us/cm; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional);

Rubber or Neoprene liner of magnetic flowmeter is configured for waste water, Magnetic flow meters use a magnetic field to generate and channel liquid flow through a pipe. A voltage signal is created when a conductive liquid flows through the flowmeter¡¯s magnetic field
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

Also known as electromagnetic flowmeter, magnetic flowmeter or induction flow meters, they function with conductive fluids to measure flow across a controlled magnetic field, 5 points are calibrated. electromagnetic flowmeter is calibrated by Mass Method liquid calibration equipment, Q&T Instrument has large stock fro varous flanges for different flow meters, like magnetic fflow meter, turbine flow meter, thermal mass flow meter, etc.

Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
