RS485 electromagnetic chilled water btu meter

Mag flowmeter is an induction type flow instrument often used to measure the volumetric flowrate of a conductive medium based on Faraday’s Law. PTFE, neoprene liner and other liners are optional, Liner of mag flowmeter has been approved NSF or FDA certificate. it can be used to measure driing water. it has function of high and low alarm, empty alarm, excitation alarm, etc.

Size: DN3-DN3000
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

Q&T have 8 sets calibration device for liquids mag flowmeter and 5 sets calibration equipments for gas. our calibration lab has been approved CNAS ISO/IEC 17025:2017. magnetic flow meter can add pt1000 temeprature sensor to be magnetic btu meter to monitor flow and btu of hot water and cold water, can calibrated on liquid test bench, standard accuracy is ¡À0.5%

Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse

electromagnetic flow meter is used to measure conductive liquids. reasonable selection of sensor lining and electrode materials, that has good corrosion resistance and wear resistance. The converter adopts a novel excitation method, with low power consumption, stable zero point and high accuracy. We provide liquid flow meter with a range of liners, electrodes, and sizes, which can meet various conductive liquids.

Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s

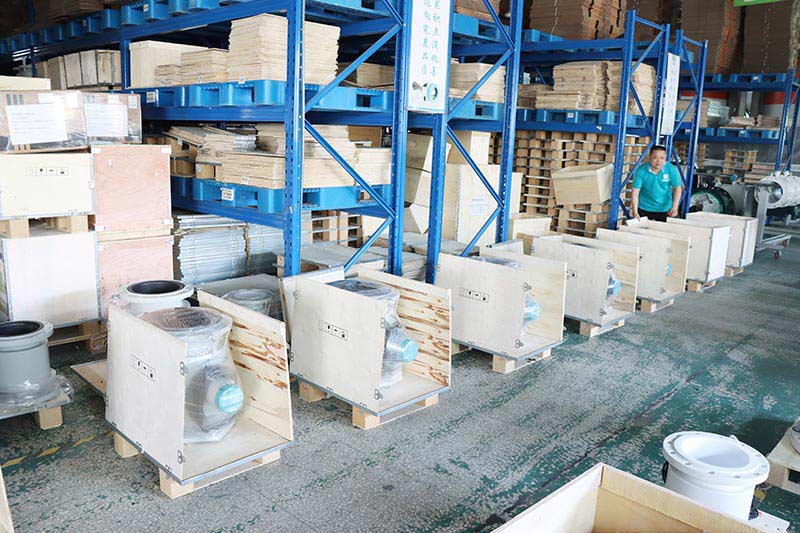

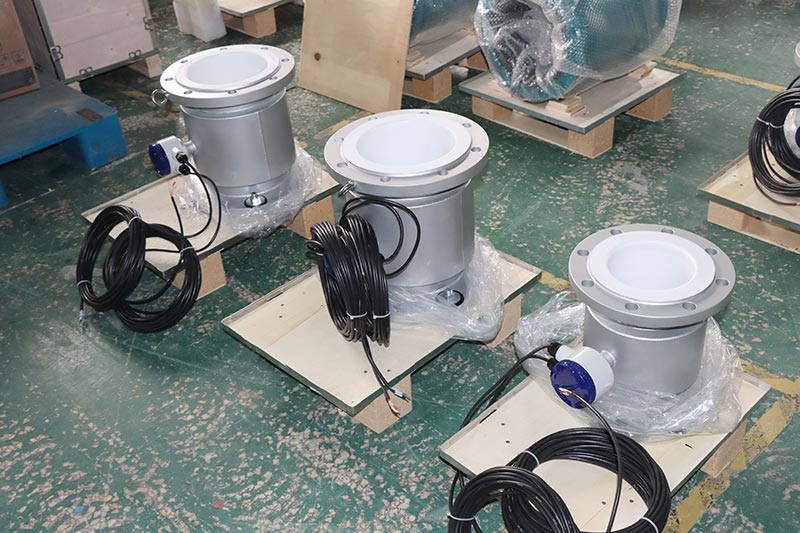

electromagnetic flow meter is to measure conductive liquids, packed by wooden case or carbone box with foam to protect flow metes won’t be damaged in transit, mag flowmeter can be delivered within 6 days for DN12-DN300, electromagnetic water meter is widely used because less obstruction, cost-effective and accurate measurement. Magnetic flowmeter don’t have any moving parts to wear down, reducing the need for maintenance or replacement.

Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Standard configuration of mag flowmeter is carbon steel, SS304 and SS316 are optional, liner is PDF or Neorpene, Q&T Instrument was established in 2005, products including mag flowmeter, turbine flow meter, ultrasonic flow meter, thermal mass flow meter, etc. We offer flowmeters with a range of liners, electrodes, and sizes, which can meet various conductive liquids.

Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse

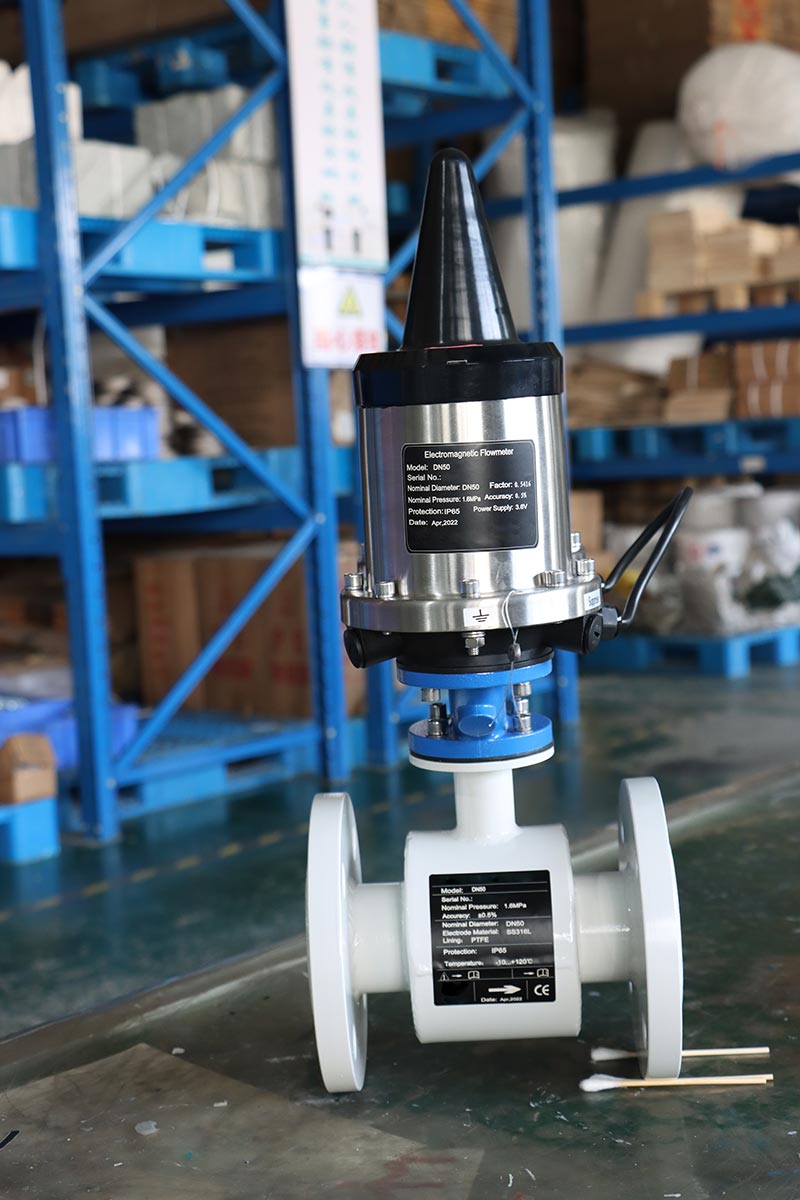

Battery power electromagnetic flow meter used in process measurement and control, leak detection, etc.Insertion Battery Magnetic flow meter usually for large diameter above DN100 and save cost. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner:PTFE,Neoprene,Hard Rubber,EPDM,FEP,Polyurethane, PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Magnetic flowmeter battery powered special for the area without AC220V/DC24V power supply, mag flow meter battery powered transfer and monitor data via 4-20mA,Pulse, RS485, GPRS. etc. Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa);
Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional);
Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA;
Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium;
Structure: Integral,remote,submersible,ex-proof;
Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ;
Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ;
Ambient Temperature: -20¡æ~+60¡æ;

Q&T Instrument has ISO/IEC 17025:2016 CNAS Approved Test Bench for ¡À0.2% Accuracy.

inline magnetic flow meter is calibrated on ¡À0.2% calibration device, so accuracy of electromagnetic flowmeter can be up to ¡À0.2%. the magnetic flow meter is configured 4~20 mA, pulse and RS485 modbus

Q&T liquid flow meter including magnetic flow meter, electromagnetic flow meter, magmeter,which is designed to measure various conductive liquids. manufacturer of flow meters and level meters. Founded in 2005, certified ISO 9001:2015
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm

Q&T Instrument is OEM with 17 year manufacturing experience. color and logo can be customized. magnetic flowmeter can be configuared SD card and bluetooth. standard display is LCD display, OLED display is optional.

Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Protection Grade: IP65 std, IP68 optional for remote
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

Q&T series electromagnetic flow meter is designed and manufactured with the most advanced domestic and abroad technology, featuring high accuracy, reliability, good stability, and long service life.We pay attention to every detail in the process of the product structure design, material selection, manufacturing, assembly, and factory testing, etc
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Q&T offer 18 months warranty for Battery powered mag flow meter, Battery flowmeter is extremely easy to use, simple to install into position & no regular maintenance required. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Liner: PTFE, Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Structure: Integral,remote,submersible,ex-proof; Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Q&T series electromagnetic flow meter is a fully intelligent electromagnetic flowmeter developed by our company using the most advanced technology at home and abroad. Its electromagnetic converter core adopts high-speed central processing unit. The calculation speed is very fast, the precision is high, and the measurement performance is reliable.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

mag flow meterinluding inserted flow and compact electromagnetic flow meter, while electromagnetic flow meters are designed to measure conductive liquids. Q&T instrument is OEM and OEM manufacturer of inline magnetic flowmeter with 17 years experience, standard cable length is 10m, widely used in water and waste water industry.

Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

Q&T series Electromagnetic Flowmeter is designed and manufactured with the most advanced domestic and abroad technology, featuring high accuracy, reliability, good stability and long service life.

Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Electromagnetic water meter has empty and full pipe measurement technique to avoid false alarms
with low conductivity measurement function
it could prompt response design for high resistance, undistorted collection of weak signals and prompt reaction for flow change.
The range can be modified on site according to the actual needs of users
The measurement results have nothing to do with flow velocity distribution, fluid pressure, temperature, density, viscosity and other logistics parameters

3.6V battery powered electromagnetic flow meter adopt advanced welding technology, battery meter has one year warranty, delivery to 158 countries in the world, also get CE, ATEX certificates. Size: DN10-DN2000; Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V, Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard), 1.5W(with DC24V);

Battery powered electromagnetic flow meter satisfy urban water supply to ensure accurate water fee calculation, Battery powered magnetic flow meter is widely used in no power supply region. Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard), IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard),1.5W(with DC24V);

Newest Product Partial Filled Pipe Flow Meter Sewage Stainless Steel Variable Area Water Flowmeters RS485 flow meters is composed of converter, flow sensor and level sensor. The user only needs to
enter the diameter of pipe, the non-full pipe flowmeter will automatically calculate the flow rate, and automatically
display the instantaneous flow, total flow, velocity, height, etc. It can measure liquid volume min 10% of full pipe. It is
especially suitable for the needs of municipal rainwater, waste water, sewage discharge and irrigation

Q&T series electromagnetic flow meters sensor and transmitter integrity check utilizing fingerprint technology . Verify the installation is correct from day one and Receive timed notifications. Protect your investment in Q&T flow metering.

Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Process connection of inline magnetic flow meter is flange, tri-clamp, wafer, thread, etc. we use mass method, pulse or comparison method to calibrate, each flow meter have calibration certificate together with goods. 5 points are calibrated for magnetic flowmeter. widely used for conductive liquids. electromagnetic flowmeter is composed by magnetic flow meter and pt1000 temeprature sensor, can calibrated on liquid test bench, standard accuracy is ¡À0.5%

Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

Forward and reverse flow measurement.
Measure pulp and slurry, water and wastewater, food and beverage, acid and alkaline.
Multiple output communication (pulse, GPRS, RS485),

DC3.6V powered mag flowmeter’s accuracy is affected by disturbances such as pumps,tees.elbows,valves, etc.,Install the battery powered mag meter in pipes with enough straight line. Size: DN10-DN2000; Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Battery powered magnetic flowmeter satisfy water fee calculation with high accuracy, battery water meter is widely used in the workplace without power supply, can work with solar power supply. Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard), IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard),1.5W(with DC24V);

Q&T series magnetic flow meters offer a high quality, economic and solid state solution for measuring flow in areas where flow sensors with moving parts cannot be applied. Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy, Papermaking, water supply and drainage, food, medicine and other industries.

Size:DN3-3000mm
Material:Carbon Steel SS304 S316
Dual Power:24V/220V
Nominal Pressure: 0.6-1.6Mpa(Max 42Mpa)
Accuracy: +/-0.5%(Standard)0.2% (Optional)
Liner: PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA
Electrode Material:SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium
Output Signal: 4-20mA/Pulse
Ambient Temperature:-20~+60deg C

RS485 0.05-10m/s Partial Filled Pipe Flow Meter digital remote valve control water meter is composed of converter, flow sensor and level sensor. The user only needs to
enter the diameter of pipe, the non-full pipe flowmeter will automatically calculate the flow rate, and automatically
display the instantaneous flow, total flow, velocity, height, etc. It can measure liquid volume min 10% of full pipe. It is
especially suitable for the needs of municipal rainwater, waste water, sewage discharge and irrigation

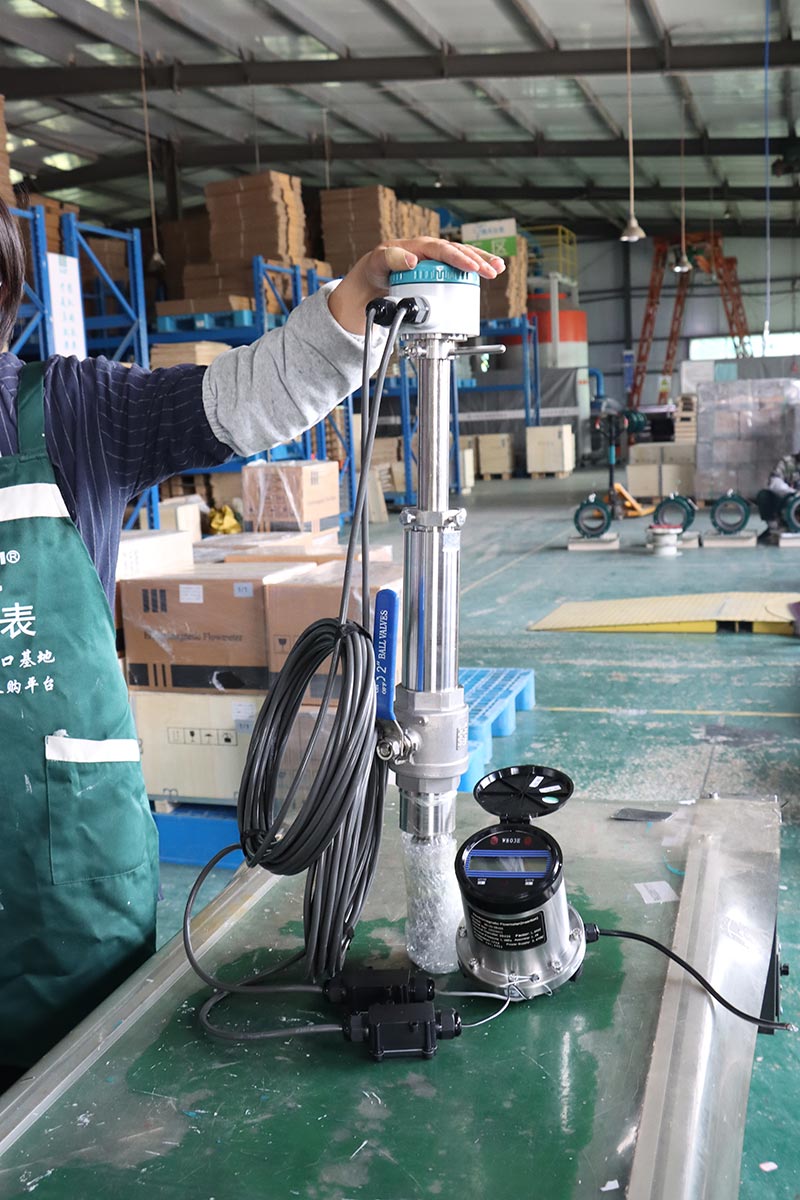

QTLD inserted magnetic flow meter is configured with ABS proble and Hastelloy C electrodes, it’s used to measure drinking water or waste water. magnetic flow meters are designed with advanced filtering and signal processing circuitry to maximize performance and reliability.
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Probe: ABS, PVC
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

Q&T Instrument has different equipment, like CNC, high and low temperature test for transmitters, pressure test for sensorns. QTLD electromagnetic flowmeter is 1/2″~120″, flange can be DIN, ANSI, JIS or othters.inline magnetic flow meter is calibrated on ¡À0.2% calibration device, so accuracy of electromagnetic flowmeter can be up to ¡À0.2%. the magnetic flow meter is configured 4~20 mA, pulse and RS485 modbus
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

electromagnetic flowmeter can be used to measure the volume flow of conductive fluids in closed pipes. It is widely used in petrochemical industry, ferrous metallurgy, water supply and drainage, water irrigation, water treatment, environmental protection sewage measurement and control, papermaking, medicine, food and other industrial and agricultural production process flow measurement and control. Electromagnetic flowmeter consists of two parts: electromagnetic flow converter and electromagnetic flow sensor. Separation type also needs a special double shielded cable connection converter and sensor. electromagnetic flowmeter are divided into two structure types: integrative type and separated type. It can be used in specified explosion-proof places. Sensor has seven electrodes of different materials and four linings of different materials to be chosen.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.

magnetic flow meter (mag meter, electromagnetic flow meter) is a transducer that measures fluid flow by the voltage induced across the liquid by its flow through a magnetic field. A magnetic field is applied to the metering tube, which results in a potential difference proportional to the flow velocity perpendicular to the flux lines. The physical principle at work is electromagnetic induction. The magnetic flow meter requires a conducting fluid, for example, water that contains ions, and an electrical insulating pipe surface, for example, a rubber-lined steel tube.
If the magnetic field direction were constant, electrochemical and other effects at the electrodes would make the potential difference difficult to distinguish from the fluid flow induced potential difference. To show this in modern magnetic flowmeters, the magnetic field is constantly reversed, cancelling out the electrochemical potential difference, which does not change direction with the magnetic field. This however prevents the use of permanent magnets for magnetic flowmeters.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
