QT Instrument OEM DN3-DN3000 magnetic flowmeter

Electromagnetic water meter use a magnetic field to generate and channel liquid flow through a pipe. A voltage signal is created when a conductive liquid flows through the flowmeter¡¯s magnetic field.

liner of tri-clamp electromagnetic flow meter is PFA, which is approved NSF, tri-clamp standard is 3A, 11851 is optional. QTLD/Ttri-clamp magnetic flow meter is designed for sanitary applications, size is DN15-DN200, the sensor isSS304 or SS316 and lined with PFA. With tri-clamp, the magnetic flow meter can be installed and torn down easilyto clear, it meet the strict requirements of food-processing and pharmaceutical industries.
Size: 1/8″-120″
Accuracy: ¡À0.5%
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s

magnetic flow meters (mag meters, electromagnetic flow meters) are a sensorthat measures fluid flow by the voltage induced across the liquid by its flow through a magnetic field. A magnetic field is applied to the metering tube.
Size: DN3-DN3000
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm

magnetic flowmeter can work in -40~150¡æ, All transmitters will be tested in the high and low temperature sensor cabinet, there is an electromagnetic coil that generates a magnetic field, and electrodes that capture electromotive force(voltage), Structure of magnetic flowmeter can be compact or remote with, battery is 85~265 VDC / 85~265VAC / 3.6V lithium battery.

Accuracy: ¡À0.5%
Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic

Mag flowmeter battery powered can be used in process measurement and control, leak detection, etc.Battery Insertion Magnetic flowmeter usually for large diameter pipeline save cost. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner:PTFE,Neoprene,Hard Rubber,EPDM,FEP,Polyurethane, PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

QTLD PTFE lining material has been approved NSF and FDA.

waste water flow meter magmeter is calibrated by MT methoud water flow standard calibration device, mass method, comparison method and pulse method can be used, standard accuracy is ¡À0.5%, ¡À0.2% accuracy is optional.

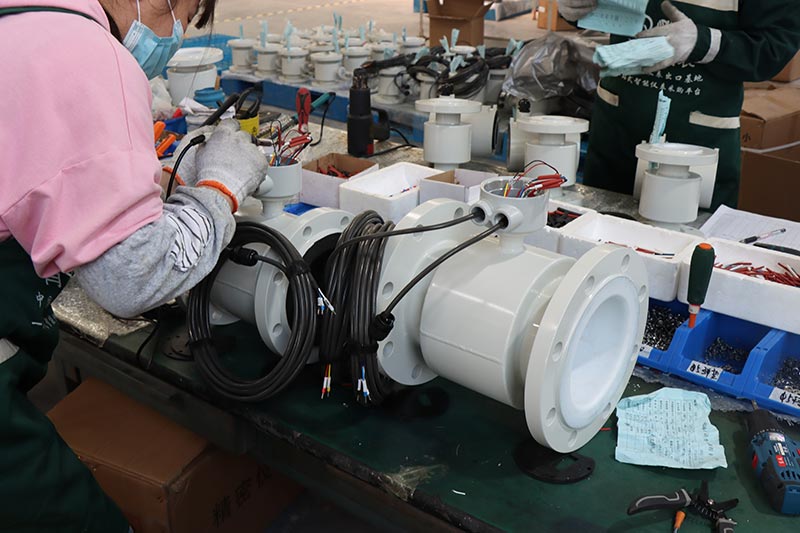

Q&T Instrument has different equipment, like CNC, high and low temperature test for transmitters, pressure test for sensorns. QTLD electromagnetic flowmeter is 1/2″~120″, flange can be DIN, ANSI, JIS or othters.inline magnetic flow meter is calibrated on ¡À0.2% calibration device, so accuracy of electromagnetic flowmeter can be up to ¡À0.2%. the magnetic flow meter is configured 4~20 mA, pulse and RS485 modbus
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Insertion electromagnetic flow meter can be hot tapping installation with thread valve or flange ball valve, all compact electromagnetic flow meter are calibrated 5 points in our factory, wafer flow meters are approved CE ATEX and ISO 17025 calibration.
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN100-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

magmeter has a simple structure, and there are no moving components in the accurate measurement pipeline, and no other throttle valve components that hinder the fluidity of the liquid. Therefore it is not possible to cause any additional pressure damage when the liquid is.

Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

Battery electromagnetic flow meter satisfy urban water supply to ensure accurate water fee calculation,battery mag flow meter is widely used in no power supply region. Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard), IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard),1.5W(with DC24V);

magnetic flowmeter is 1/2″~120″, flange can be DIN, ANSI, JIS or othters. inline magnetic flow meter is widely used in Sewage Treatment Plant Water Supply project and Steel & Aluminum Industries, Chemical & Fertilizer Industries. pressure of QTLD water flow emter can be ANSI 150#, 300#, 600#, 900#, etc. all waste water flow meter will be tested by pressure equipment. magnetic flowmeter is calibrated by ISO/IEC 17025:2016 CNAS Approved Test Bench.

Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

3.6V battery powered electromagnetic flow meter is ideal in process measurement and control, survey, leakage detection, etc.Insertion battery mag meters specially installed in any large size pipeline. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner:PTFE,Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B, Hastelloy C, Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Battery power mag flow meter enjoy good accuracy with ¡À0.5%, 3.6V battery meter provides with 3-5 years continuous battery operation, flowmeter easy easy maintain in operation. Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ; Ambient Temperature: -20¡æ~+60¡æ; Ambient Humidity: 5-100%RH (relative humidity);

magmeter measure the volume flow, flow rate, and temperature with very precise measurement results for optimized processes. our calibration lab has been approved CNAS ISO/IEC 17025:2017. Q&T Instrument has large stock fro varous flanges for different water flow meters, like magnetic fflow meter, turbine flow meter, oval gear flow meter, etc.

Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

Our Q&T attention to every detail in the process of the product structure design, material selection, manufacturing, assembly and factory testing etc. With a water tower up to 35m as pressure stabilizer for actual flow calibration, we have a professional production line for electromagnetic flowmeter, also we design and develop a series of software and hardware for electromagnetic flowmeter for mass production to ensure high quality in long term use.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Liquid flow meter is widely used in Sewage Treatment Plant Water Supply project and Steel & Aluminum Industries, Chemical & Fertilizer Industries. Q&T brand electromagnetic water meter has been approved ATEX explosion proof certificate. which can be used any conductivity is higher than 20 ¦ÌS/cm.
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm

electromagnetic flow meters are designed for the most demanding applications. Flow in all kinds of conductive liquids can be accurately measured. it’s mainly used to measure beverage, like milk, beer, juice, etc. inline magnetic flowmeter can be compact or remote type with 10m cable. our main products are electromagnetic flow meter, ultrasonic flowmeter, vortex flow meters, turbine flowmeters, thermal mass flow meters, variable area flow meters, which widely used for water and gas.

Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote

QTWG series electromagnetic flow meter is designed for demanding water and wastewater applications, and for use in hazardous areas and under harsh conditions. The flow meter features dual-compartment housing, up to three input/outputs, and accurate bidirectional measurement independent of pressure, density, temperature and viscosity.

Size:DN3-3000mm
Material:Carbon Steel SS304 S316
Dual Power:24V/220V
Nominal Pressure: 0.6-1.6Mpa(Max 42Mpa)
Accuracy: +/-0.5%(Standard)0.2% (Optional)
Liner: PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA
Electrode Material:SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium
Output Signal: 4-20mA/Pulse
Ambient Temperature:-20~+60deg C

Magnetic flowmeter battery powered enjoys IP68 protection, mag flow meter battery powered can add external 12-24 V DC power supply with 4-20mA output. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) :-10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP): -10¡æ~+160¡æ; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional), HART(Optional), GPRS/GSM (Optional);

Magnetic heat meter standard configuration of flange and sensor shell is carbon steel, SS304 and SS316L are optional.

the electromagnetic flow meter has wide range of nominal diameters (DN3-3000), Independent of pressure, temperature, density and viscosity
mag flowmeter built-in grounding electrodes, it has ii-directional flow measurement. High accuracy 0.2% available, Self-diagnosis function, empty pipe alarm, exciting alarm

3.6V battery powered magnetic flow meter also could measure & display temperature and pressure, humanized human-computer interaction interface, battery mag meter enjoy easy operation. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Liner: PTFE, Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Structure: Integral,remote,submersible,ex-proof; Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

magnetic flowmeter has a large measurement scale, usually 10:1, and the optional flow scale is wide. electromagnetic flow meter is widely used because less obstruction, cost-effective and accurate measurement. and no other throttle valve components that hinder the fluidity of the liquid. Therefore it is not possible to cause any additional pressure damage when the liquid is.

Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

electromagnetic flow meter is used to measure conductive liquids. reasonable selection of sensor lining and electrode materials, that has good corrosion resistance and wear resistance. The converter adopts a novel excitation method, with low power consumption, stable zero point and high accuracy. We provide liquid flow meter with a range of liners, electrodes, and sizes, which can meet various conductive liquids.

Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s

Process connection of insertion magnetic flowmeter is thread ball valve or flange ball valve, it can be install with pressure. insertion electromagnetic flow meter is used to measure the flow of conductive liquids. insertion magmeter, which allows sensor to be installed and retracted from process piping without shutting down the process. size is from DN100-DN3000

Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

magnetic flowmeter is unaffected by changes in fluid density, viscosity, temperature, pressure and conductivity. There are no obstructing flow parts in the measuring tube, no pressure loss, and lower requirements for straight pipe sections. Unique adaptability to slurry measurement. structurer is compact type and remote type with 10m cable standard and 120m max. hard rubber or Neoprene liner of magnetic flowmeter is configured for drinking water

Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm

Battery power magnetic flow meter is designed for calibration of flow meters under controlled and stable flow conditions.Battery power mag flow meter provide obstruction free flow measurement. Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard), 1.5W(with DC24V); Explosion Proof: ATEX

magmeter is calibrated on ¡À0.2% accuracy test bench, electromagnetic flowmeter is calibrationed 5 points. our calibration lab has been approved CNAS ISO/IEC 17025:2017. Q&T Instrument has large stock fro varous flanges for different water flow meters, like magnetic fflow meter, turbine flow meter, oval gear flow meter, etc.

Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

A variety of electrodes and linings are available for a variety of complex working conditions.
It is unaffected by changes in temperature, density, viscosity, concentration and electrical conductivity.

Electromagnetic water meter is manufactured with the present up-to-data technology for electromagnetic flowmeter. It has the following characteristics:
The measurement is independent of density, viscosity, temperature, pressure and the change of conductivity of the fluid;

This electromagnetic wastewater flow meter has the features of no moving parts, which reduced the maintenance and repair with an obstructionless design. Alignment rings are available to install easily. and this magnetic flow meter Support data record / bluetooth / wireless communication

Specifications:
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis
Support data record / bluetooth / wireless communication
