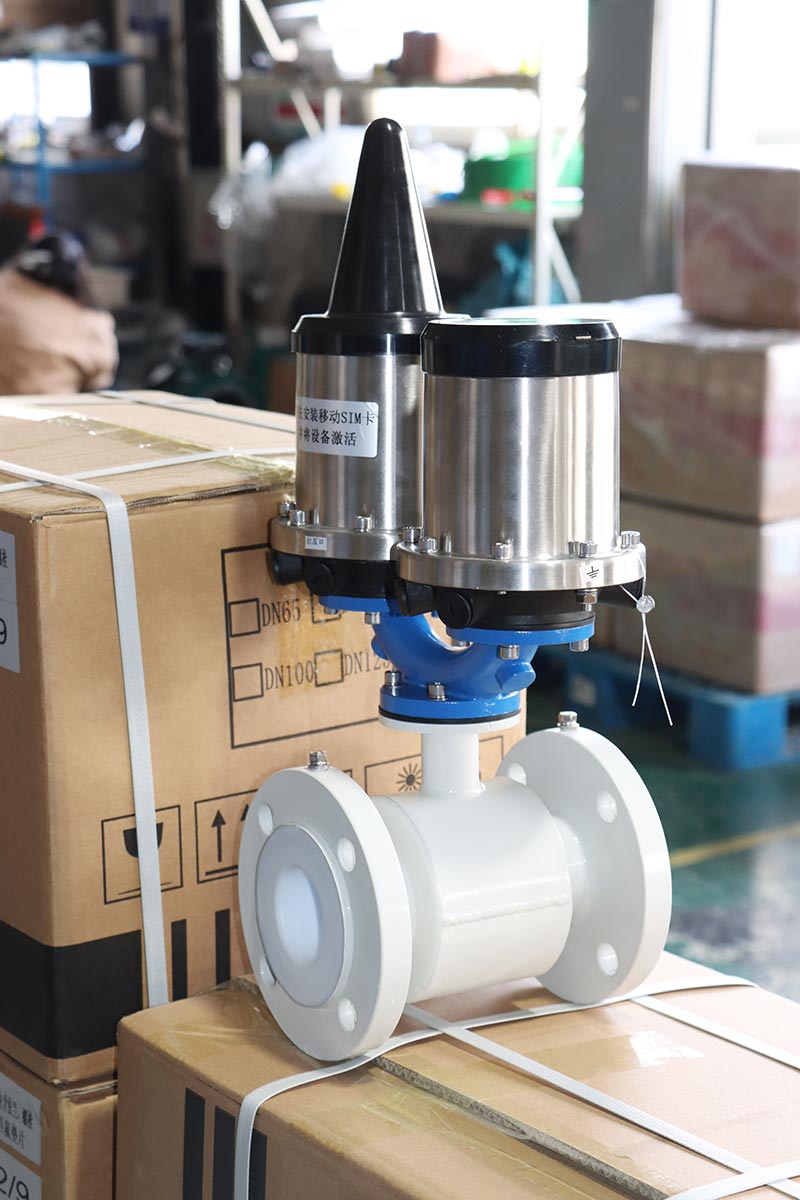

Q&T Fast delivery battery mag flow meter

DC3.6V powered mag flow meter service life with 5 years, battery flowmeter fulfills the special customer demands to water application with distribution network as well as irrigation. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Measuring Range: Max 15m/s; Conductivity: >5us/cm; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional);

1. Can be used for flow measurement of open non-full pipe (round pipe, rectangular pipe or other special-shaped pipe);
2. Can be used for continuous measurement of municipal rainwater, wastewater, sewage discharge and irrigation water pipelines;

Battery power magnetic flowmeter could reach IP68 protection,Battery power mag flowmeter could put under water for long time, flow meter also have external DC12-24V power. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM (Optional);

Liner of tri-clamp mag flow meter is PFA, which is approved NSF and FDA, sensor material is SS304 or SS316, it’s mainly used to measure beverage, like milk, beer, juice, etc. inline magnetic flowmeter can be compact or remote type with 10m cable. electromagnetic flowmeter is volumetric flow meter that measure the flow when conductive liquids move through a magnetic field. mag flowmeters have function of high and low alarm, empty pipe alarm, exciting alarm and self-diagnosis.
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote

Battery electromagnetic flowmeter is ideal in process measurement and control, survey,water leakage detection, etc. Insertion battery mag meters start from DN100 to DN3000 pipeline. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner:PTFE,Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B, Hastelloy C, Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Battery powered magnetic flowmeter satisfy water fee calculation with high accuracy, Battery powered mag flowmeter is widely used in applications without power grid, can work with solar power supply. Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard), IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard),1.5W(with DC24V);

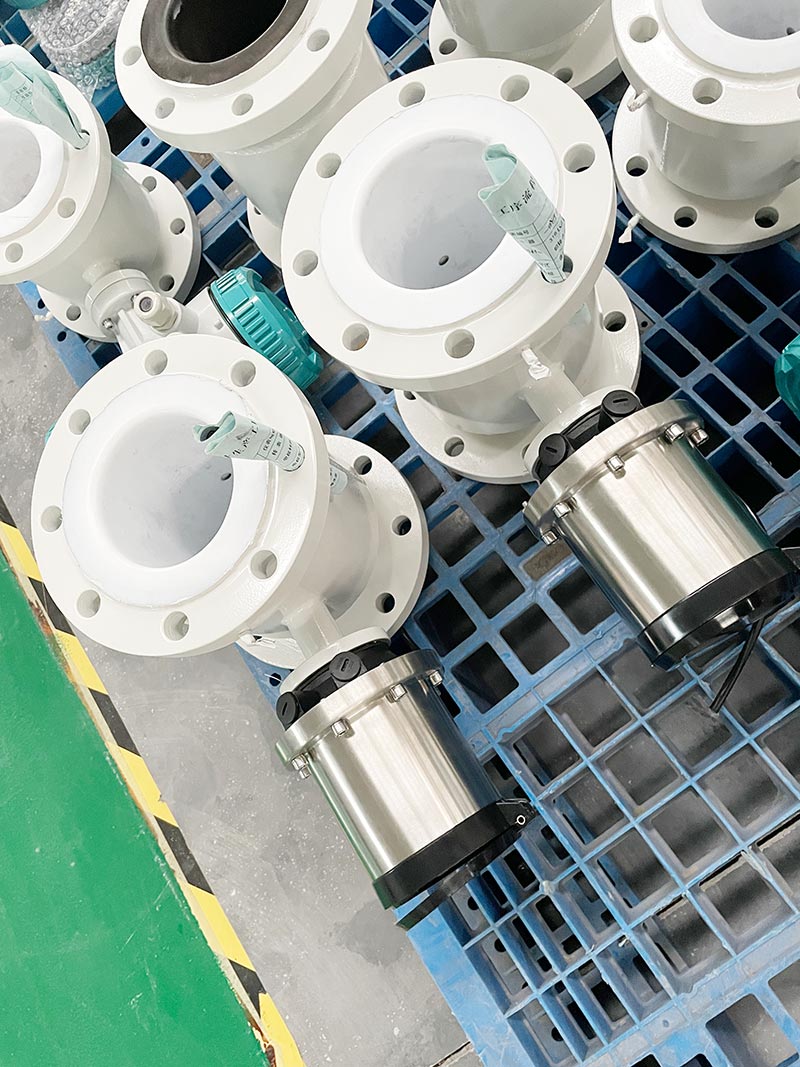

3.6V battery powered magnetic flowmeter enjoys ¡À0.5% accuracy, installation should be away from pumps,tees,elbows,valves,etc., mag flow meter front straight pipeline 5D, rear straight pipeline 3D. Size: DN10-DN2000; Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Accuracy of mag flow meter is ¡À0.5% standard, ¡À0.2% is optional, magmeter is calibrated on ¡À0.2% accuracy calibration device. A flow transmitter energizes the coils which creates a magnetic field in the tube. A conductive fluid moving through this field generates an induced voltage at two electrodes in the tube. waste water flow meter can be compact type and remote type, standard cable length is 10m and max cable length is 120m.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s

Remote magmeter don’t have any moving parts, simple structure, light weight, electromagnetic flow meters are intelligent equipment, integrated magnetic flow meter is easy to install and operate.
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

Electromagnetic water meter has GPRS and CDMA wireless data transmission functions;
it has RS485modbus protocol (external power supply or battery power supply) communication function to realize remote data collection and management.
The sensor with advanced processing technology and liquid airproof is of long
natural life and of nice resistance to shaking leakage.It guarantees the instrument
good precision and stability .

magnetic flow meter (mag flow meter) is a volumetric flow meter. Electromagnetic Flow Meters do not have any moving parts. Magnetic flow meter is ideal for any dirty liquid which is conductive or water based, like: wastewater applications. Where low-pressure drop and low maintenance are required, Magnetic flowmeters are also idel.
Magnetic flow meters are often selected and specified for applications, because they are obstruction-less, cost-effective for aggressive chemicals and slurries. Magnetic flow meters provide highly accurate volumetric flow measurement. Accuracy over a wide flow range can be as good as ± 0.5% of flow rate or better. Magnetic flow meters can be compact type, remote type, and insertion type. A wide range of liner materials, electrode options, and line sizes accommodate a wide variety of process application
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.

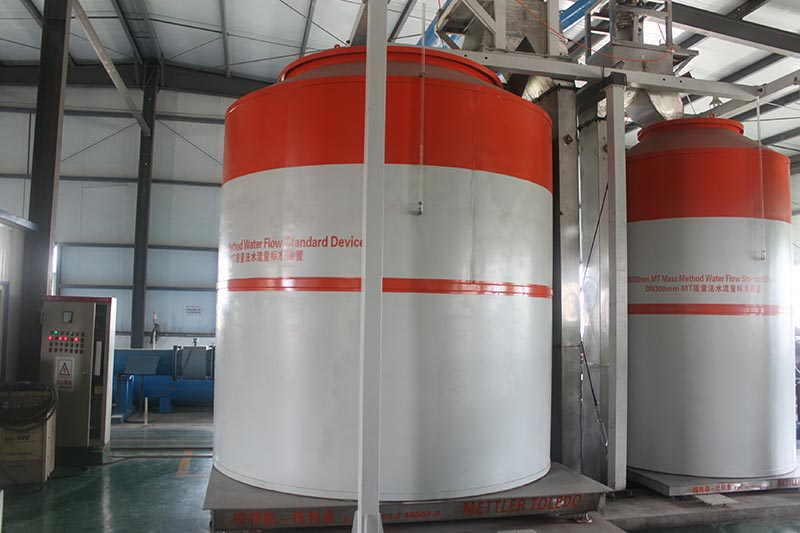

mag flowmeter is calibrated by MT methoud water flow standard calibration device, mass method, comparison method and pulse method can be used, magnetic flow meter is calibrated by standard mass method by high accuracy calibration equipment. standard accuracy is ¡À0.5%, ¡À0.2% accuracy is optional. If conductive media such as cooling water are added to a process,

Size: 1/8″-120″
Accuracy: ¡À0.5%
Structure: compact, remote
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

Electromagnetic water meter is of high reliability without lining in the measuring pipe .
The wide range of the nominal bore is suitable for all the pipe size between DN50 and DN300.

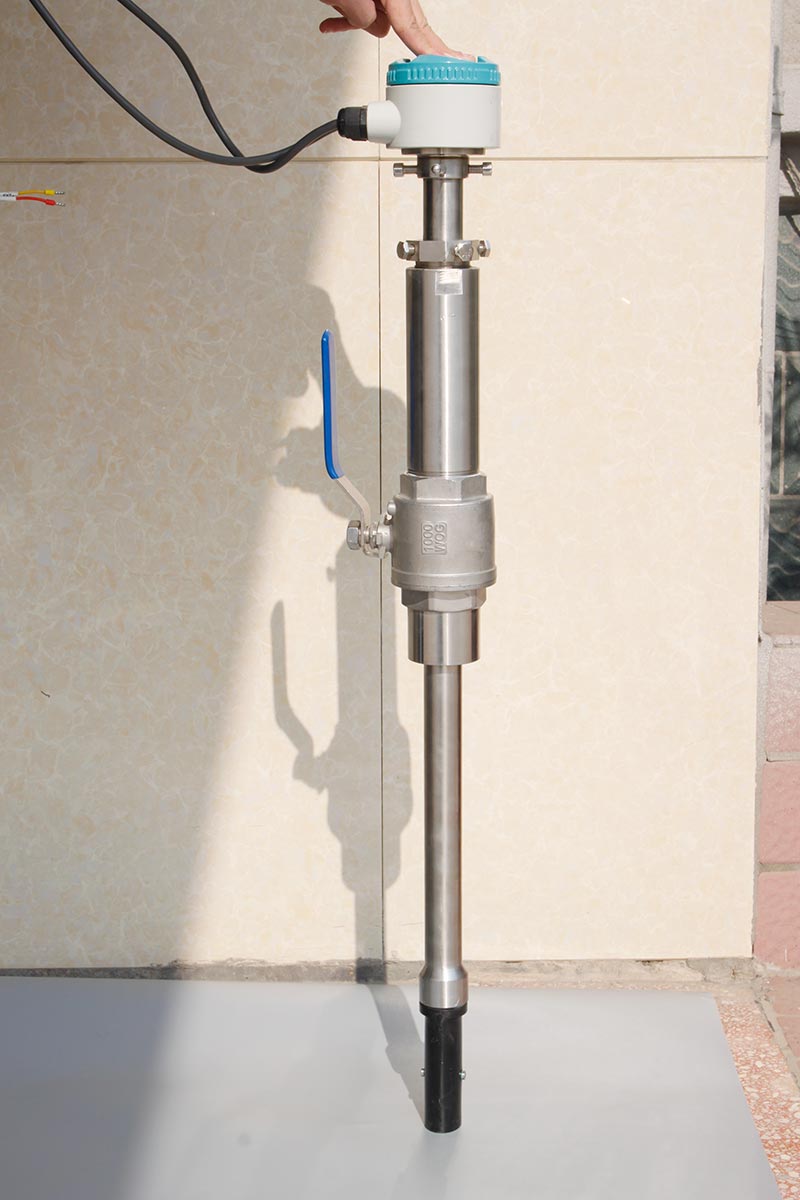

The insertion magnetic flowmeter is remote type with 10m cable, mainly used to large pipeline, it can be install with pressure. insertion mag flowmeter is used to measure the flow of conductive liquids. insertion magmeter, which allows sensor to be installed and retracted from process piping without shutting down the process. size is from 4″~240″

Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

size of QTLD magnetic energy meter is DN15-DN200, the sensor is
SS304 or SS316 and lined with PFA. With tri-clamp, the magnetic flow meter can be installed and torn down easily to clear, it meet the strict requirements of food-processing and pharmaceutical industries. magnetic flowmeter is compsed by transmitter and sensor. The magmeter flow meter is to measure sulphuric acid, it’s configured PTFE liner and Tantalum electrodes to be anti-corrosive.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Structure: compact, remote
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

intelligent electromagnetic flowmeter is a new generation of fully intelligent flowmeter developed by our company based on Faraday electromagnetic induction principle. The electromagnetic flowmeter can not only measure the volume flow of conductive liquid, but also measure the volume flow of corrosive liquid such as strong acid and alkali, and even liquid-solid two phase suspension liquid such as mud, pulp and pulp. It is widely used in the fields of petroleum, chemical industry, metallurgy, textile, pharmacy, food and beverage, paper making, electric power, urban water supply and drainage and environmental protection.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.

magnetic flowmeter can be compact with IP65 protection grade, remote with IP68 protection grade, inline magnetic flow meter can be submerged in the water or buried underground, standard cable length is 10m, 5 points are calibrated according to ISO 17025. We offer flowmeters with a range of liners, electrodes, and sizes, which can meet various conductive liquids.

Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote

waste water electromagnetic flow meter waste water electromagnetic flow meter sensors and converters in two parts. The product is based on Faraday’s law of electromagnetic induction, used to measure the conductance greater than 20 μS / cm volume of conductive liquid flow,
Medium temperature:
Integral type : -20℃~60℃
Remote type(Rubber&Polyurethane liner): -10℃~80℃
Remote type (PTFE&PFA&F46 liner): -10℃~160℃
♦ Integrated verification,diagnostic function and empty pipe detection.
♦ Measure forward and reverse direction flows.
♦ Built-in reference electrodes,no need to connect ground ring.

3.6V battery powered magnetic flowmeter satisfy urban water supply to ensure accurate water fee calculation,3.6V battery powered mag flowmeter is widely used in no power supply region. Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard), IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard),1.5W(with DC24V);

Electromagnetic water meter is widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy,Papermaking, water supply and drainage, food, medicine and other industries.

With simple structure ,the flow meter is of high reliability without lining in the measuring pipe .
The wide range of the nominal bore is suitable for all the pipe size between DN50 and DN300.

Q&T offer 18 months warranty for Battery powered electromagnetic flow meter, battery flow meter is extremely easy to use, simple to install into position & no regular maintenance required. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Liner: PTFE, Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Structure: Integral,remote,submersible,ex-proof; Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

partially-filled flowmeter is composed of converter, flow sensor and level sensor. The user only needs to
enter the diameter of pipe, the non-full pipe flowmeter will automatically calculate the flow rate, and automatically
display the instantaneous flow, total flow, velocity, height, etc. It can measure liquid volume min 10% of full pipe. It is
especially suitable for the needs of municipal rainwater, waste water, sewage discharge and irrigation

QTLD magnetic flow meters have been approved CE and Atex certificate, explosion proof are optional. Size can be DN3-DN3000, water flowmeter can be calibrated according to CNAS ISO/IEC 17025:2017, which is recongition by ILAC-MAR.
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm

Q&T offer 18 months warranty for battery operated magnetic flowmeter, battery flowmeter is extremely easy to use, simple to install into position & no regular maintenance required. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Liner: PTFE, Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Structure: Integral,remote,submersible,ex-proof; Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

protection grade of electromagnetic flow meter sensor is IP68 for split type and IP65 for integrated mag flowmeter. QTLD series electromagnetic flowmeters represent the state-of-the-art for accurate measurement in water cycle and process applications. This new-generation meter incorporates improvements to the magnetic distribution elements that allow accurate operation throughout all flow regimes.

Size: DN3-DN3000
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

inserted electromagnetic flow meter has multi-choice in electrodes and liner material, High and low alarm, empty pipe alarm, self-diagnosis. Three built-in totalizers: forward flow, reverse flow and net flow. remote magnetic flow meter is designed for the conductive liquids. Flow in all kinds of conductive liquids can be accurately measured by utilizing the pulsating magnetic fields.
Probe: ABS, PVC
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s

Battery magnetic flowmeter also could measure & display temperature and pressure, humanized human-computer interaction interface, battery mag flow meter enjoy easy operation. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa);
Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional);
Liner: PTFE, Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA;
Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium;
Structure: Integral,remote,submersible,ex-proof;
Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional);
Output Signal: 4-20mA / pulse (optional);
Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Pressure of QTLD water flow emter can be ANSI 150#, 300#, 600#, 900#, etc. all waste water flow meter will be tested by pressure equipment. QTLD water flow meter is calibrated by ISO/IEC 17025:2016 CNAS Approved Test Bench. it can be powered by AC/DC/3.6V lithium battery. Inline flow meter is widely used for conductive liquids which conductivity is high than 20 ¦ÌS/cm, size is DN3-DN3000, which can be used various pipes.
Size: 1/8″-120″
Accuracy: ¡À0.5%
Structure: compact, remote
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

Battery mag flowmeter adopt advanced welding technology, electromagnetic flowmeter battery has one year warranty, delivery to 158 countries in the world, also get CE, ATEX certificates. Size: DN10-DN2000; Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V, Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard), 1.5W(with DC24V);
