PT1000 temperature sensor magnetic energy meter for conductive liquids

Application: Outdoor,underground.Especially
Without power supply places.
Battery Powered: 3.6V lithium battery
Communication Interface:RS485
Wireless Communication:GSM¡¢GPRS¡¢CDMAProtection:IP68

Measuring Range :0~12m/s ;
Conductive Ratio of the Medium :5¦Ìs/cm
Medium Temperature : -10¡æ~55¡æ ;
Power Supplied : 3.6V DC in-built Lithium ion battery power supplied , continually working for more than three years.

magmeter work based on the Faraday Law of electromagnetic induction. In a simplified description, the flow sensor contains two magnetic coils located on opposite sides of the tube. A flow transmitter energizes the coils which creates a magnetic field in the tube. A conductive fluid moving through this field generates an induced voltage at two electrodes in the tube. waste water flow meter can be compact type and remote type, standard cable length is 10m and max cable length is 120m.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s

Q&T series insert type electromagnetic flowmeter is on the basis of pipeline electromagnetic flowmeter developed a kind of new flow meter.
After adopting the technology of pressure opening and pressure installation, the plug-in electromagnetic flowmeter can be installed without stopping water, and can also be installed on cast iron pipes and cement pipes. The successful development of plug – in electromagnetic flowmeter provides a new method for fluid flow measurement.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Rubber or Neoprene liner of magnetic flowmeter is configured for waste water, Magnetic flow meters use a magnetic field to generate and channel liquid flow through a pipe. A voltage signal is created when a conductive liquid flows through the flowmeter¡¯s magnetic field
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

Measurement of mag flowmeter is independent of fluid density, viscosity, temperature, pressure, and conductivity. Two measuring points inside the meter with no moving, parts to eliminate pressure drop
Capable of measuring electric conductive liquid and
fluids with low solid contents
Size: 1/8″-120″
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

Reasonable selection of sensor lining and electrode materials, that has good corrosion resistance and wear resistance. The converter adopts a novel excitation method, with low power consumption, stable zero point and high accuracy. mag flowmeter is calibrated by standard mass method by high accuracy calibration equipment. standard accuracy is ¡À0.5%, ¡À0.2% accuracy is optional.

Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s

electromagnetic flowmeter is unaffected by changes in fluid density, viscosity, temperature, pressure and conductivity. There are no obstructing flow parts in the measuring tube, no pressure loss, and lower requirements for straight pipe sections. mag flowmeter is calibrated by standard mass method by high accuracy calibration equipment. standard accuracy is ¡À0.5%, ¡À0.2% accuracy is optional.

Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm

Q&T series easily accessible transmitter offers high flexibility for operation and system integration. The transmitter features access from one side, a remote display, and improved connectivity options.Q&T series electramanetic flow meter have also been integrated with series of communication protocols i.e. RS485, RS232, HART and MODBUS.

Size:DN3-3000mm
Material:Carbon Steel SS304 S316
Dual Power:24V/220V
Nominal Pressure: 0.6-1.6Mpa(Max 42Mpa)
Accuracy: +/-0.5%(Standard)0.2% (Optional)
Liner: PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA
Electrode Material:SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium
Output Signal: 4-20mA/Pulse
Ambient Temperature:-20~+60deg C

Battery operated magnetic flow meter enjoy good accuracy with ¡À0.5%, battery water meter provides with 3-5 years continuous battery operation, flowmeter easy maintain in operation. Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ; Ambient Temperature: -20¡æ~+60¡æ; Ambient Humidity: 5-100%RH (relative humidity);

Electromagnetic water meters are widely used in industrial sectors such as chemical industry, environmental protection, metallurgy, pharmaceutical, paper making, water supply and removal etc.
Application: Outdoor,underground.Especially
Without power supply places.
Battery Powered: 3.6V lithium battery
Communication Interface:RS485
Wireless Communication:GSM¡¢GPRS¡¢CDMAProtection:IP68

“Q&T series Electromagnetic flowmeters for the accurate flow measurement of any conductive fluid, Ideally suited to water and waste water treatment plants, mining and general industry.Q&T series Electromagnetic flowmeters transmitter display guides operator with menu prompts during configuration.
Comprehensive output options, Include multiple analogue, relay, digital and serial outputs.”
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

mag flowmeter velocity of the full scale value can be selected within 0.5¡«10m/s. waste water flow meter can be expanded and reduced on-site according to the needs (for example, there is a 4-digit potentiometer to set the instrument constant) without removing them for offline real-flow calibration.

Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse

Battery powered electromagnetic flowmeter is designed for calibration of flow meters under controlled and stable flow conditions.Battery flowmeters provide obstruction free flow measurement. Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard), 1.5W(with DC24V); Explosion Proof: ATEX

QTLD magnetic flowmeter, also known as electromagnetic flow meter or mag meter, is widely used because less obstruction, cost-effective and accurate measurement. Electromagnetic flow meter don’t have any moving parts to wear down, reducing the need for maintenance or replacement. We offer flowmeters with a range of liners, electrodes, and sizes, which can meet various conductive liquids.

Accuracy: ¡À0.5%
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s

Newest Product Partial Filled Pipe Flow Meter Sewage Stainless Steel Variable Area Water Flowmeters RS485 flow meters is composed of converter, flow sensor and level sensor. The user only needs to
enter the diameter of pipe, the non-full pipe flowmeter will automatically calculate the flow rate, and automatically
display the instantaneous flow, total flow, velocity, height, etc. It can measure liquid volume min 10% of full pipe. It is
especially suitable for the needs of municipal rainwater, waste water, sewage discharge and irrigation

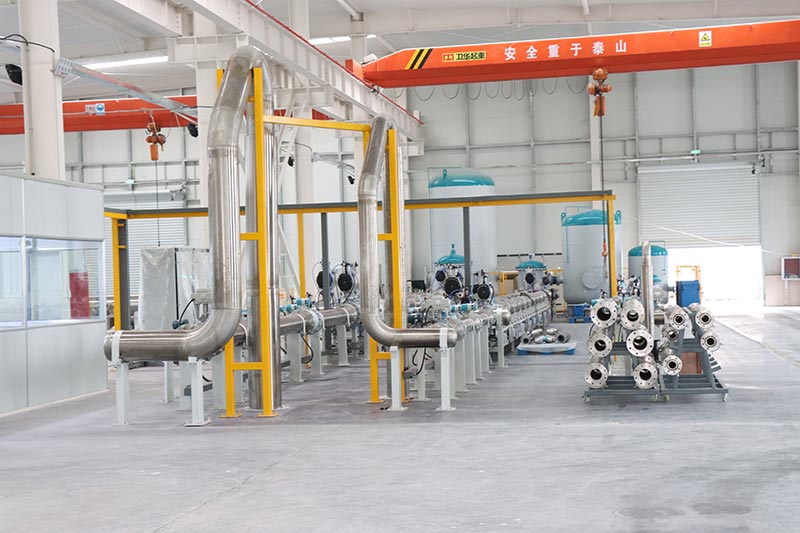

magnetic flowmeters is calibrated by Mass Method liquid calibration equipment with 5 points, which is approved by CNAS ISO 17025, which is mutual recognition by ilac-MRA, water flow meter can add pt1000 temeprature sensors to be electromagnetic heat meter to monitor flow and btu of hot water and cold water, can calibrated on liquid test bench, standard accuracy is ¡À0.5% standard, ¡À0.2% optional.

Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

Insertion electromagnetic flow meter can be hot tapping installation with thread valve or flange ball valve, all compact electromagnetic flow meter are calibrated 5 points in our factory, wafer flow meters are approved CE ATEX and ISO 17025 calibration.
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN100-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

With simple structure ,the flow meter is of high reliability without lining in the measuring pipe .
The wide range of the nominal bore is suitable for all the pipe size between DN50 and DN300.

Protection grade of compact mag flowmeter is IP65 for compact version, IP67 is optional, power can be 8~36VDC, 85~265VAC. 4~20 mA, pulse or RS485 are standard configuration. insertion magnetic flowmeter can configure thread or flange ball valve to be hot-tapped, which allows sensor to be installed and retracted from process piping without shutting down the process.

Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Protection Grade: IP65 std, IP68 optional for remote
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

Protection grade of compact liquid flow meter is IP65 for compact version, IP67 is optional, power can be 8~36VDC, 85~265VAC. 4~20 mA, pulse or RS485 are standard configuration. mag flowmeter is widely used because less obstruction, cost-effective and accurate measurement. mag flowmeters don’t have any moving parts to wear down, reducing the need for maintenance or replacement.

Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Protection Grade: IP65 std, IP68 optional for remote
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

3.6V battery powered magnetic flow meter service life with 5 years, 3.6V battery powered mag flow meter fulfills the special customer demands to water application as well as irrigation. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Measuring Range: Max 15m/s; Conductivity: >5us/cm; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional);

Battery power electromagnetic flow meter satisfy water fee calculation with high accuracy,3.6V magmeter is widely used in applications without power grid, can work with solar power supply. Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard), IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard),1.5W(with DC24V);

Battery power electromagnetic flowmeter service life with 5 years, battery flowmeter fulfills the special customer demands to water application with distribution network as well as irrigation. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Measuring Range: Max 15m/s; Conductivity: >5us/cm; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional);

communication of magnetic flow meter is RS485, HART, Profibus DP and PA. Measurement of magnetic flowmeter is independent of fluid density, viscosity, temperature, pressure, and conductivity. the pipe is PVC, so we configure grounding rings to have better grounding to protect the electromagnetic flow meter.

Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

Battery power magnetic flow meter is designed for calibration of flow meters under controlled and stable flow conditions.Battery power mag flow meter provide obstruction free flow measurement. Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard), 1.5W(with DC24V); Explosion Proof: ATEX

Battery power electromagnetic flow meter with IP68 protection, Battery power magnetic flow meter workable under water for few days, flow meter can add external 12-24 VDC power supply with 4-20mA. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) :-10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP): -10¡æ~+160¡æ; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional), HART(Optional), GPRS/GSM (Optional);

Pressure of QTLD water flow emter can be ANSI 150#, 300#, 600#, 900#, etc. all waste water flow meter will be tested by pressure equipment. QTLD water flow meter is calibrated by ISO/IEC 17025:2016 CNAS Approved Test Bench. it can be powered by AC/DC/3.6V lithium battery. Inline flow meter is widely used for conductive liquids which conductivity is high than 20 ¦ÌS/cm, size is DN3-DN3000, which can be used various pipes.
Size: 1/8″-120″
Accuracy: ¡À0.5%
Structure: compact, remote
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

liquid flow meter including magnetic flow meter, ultrasonic flow meter, turbine flow meter, etc, while electromagnetic flow meter is widely used for conductive liquids, main components are sensor and transmitter, liquid flow meter is calibrted according to CNAS 17025.QTLD magmeter has been approved CE and Atex. electromagnetic flow meter don’t have any moving parts to wear down, reducing the need for maintenance or replacement.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote

QTLD inserted magnetic flow meter is configured with ABS proble and Hastelloy C electrodes, it’s used to measure drinking water or waste water. magnetic flow meters are designed with advanced filtering and signal processing circuitry to maximize performance and reliability.
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Probe: ABS, PVC
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
