hot and chilled water magnetic btu meter CE Atex Approved mag flowmeter

QTLD water flow meters inluding inserted flow and compact electromagnetic flow meter, vortex flow meter, metal tube rotameter, ultrasonic flow meter, while electromagnetic flow meters are designed to measure conductive liquids. We have 17 years manufacturing expericen, can meet variouls requirement on flow measurement.
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

Battery power magnetic flowmeter can be used in process measurement and control, leak detection, etc.Battery Insertion Magnetic flow meter usually for large diameter pipeline save cost. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner:PTFE,Neoprene,Hard Rubber,EPDM,FEP,Polyurethane, PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

magnetic flow meter (mag flow meter) is a volumetric flow meter. Electromagnetic Flow Meters do not have any moving parts. Magnetic flow meter is ideal for any dirty liquid which is conductive or water based, like: wastewater applications. Where low-pressure drop and low maintenance are required, Magnetic flowmeters are also idel.
Magnetic flow meters are often selected and specified for applications, because they are obstruction-less, cost-effective for aggressive chemicals and slurries. Magnetic flow meters provide highly accurate volumetric flow measurement. Accuracy over a wide flow range can be as good as ± 0.5% of flow rate or better. Magnetic flow meters can be compact type, remote type, and insertion type. A wide range of liner materials, electrode options, and line sizes accommodate a wide variety of process application
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.

Mag flowmeter battery powered enjoys ¡À0.5% accuracy, installation keep away from pumps,tees,elbows,valves,etc., battery operated electromagnetic flow meter front straight pipeline 5D, rear 3D. Size: DN10-DN2000; Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

No Moving Parts
RS485 Standard,HART standard is available.
Suitable for Pipes Up to DN300
Pulse, Gprs output
Standard 5 points calibration Included

liquid flow meter can be calibrated 5 pcs once time. mag flowmeter is calibrated on ¡À0.2% accuracy test bench, liquid flow meters are calibrated by mass method, comparison method, Liquid flow meter is widely used in Sewage Treatment Plant Water Supply project and Steel & Aluminum Industries, Chemical & Fertilizer Industries.
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

Q&T series Electromagnetic flowmeter follows the faraday law of electromagnetic induction.When the conductive liquid flows through the electromagnetic flowmeter,the induced electromotive force will be produced in the conductor,and the induced electromotive force is directly proportional to the velocity of conductive liquid,magnetic flux density and width of conductor(inside diameter of flowmeter,such induced electromotive force is detected by a pair of electrodes on the tube wall of the flowmeter,and the rate of flow can be acquired by mathematical operation.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

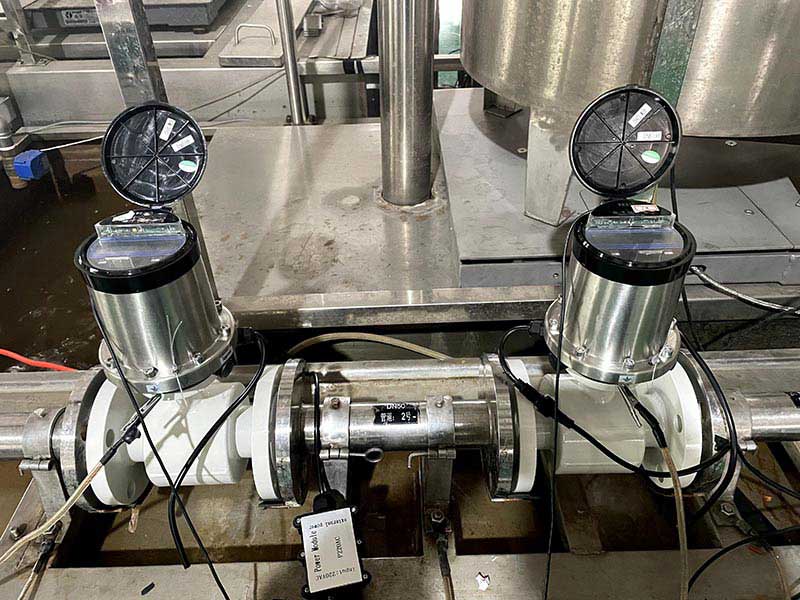

magnetic flow meter is calibrated on ¡À0.2% accuracy liquid test bench, mag flowmeter is calibrationed 5 points. Electromagnetic flowmeters are volumetric flow meters which do not have any moving parts. This lack of moving parts reduces the need for maintenance or replacement. Our mag flow meters have an accuracy over a wide flow range that can often exceed ¡À 0.5% of flow rate. Our MAG flow meters are ideal for liquids.

Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

Electromagnetic water meter is using 16-bit embedded microprocessor, fast operation speed, high accuracy, programmable frequency low frequency rectangular wave excitation, improve the stability of flow measurement, and low power consumption. Full digital processing, strong anti-interference ability, reliable measurement, high accuracy, flow measurement range up to R400.
1.Sensor suitable:DN3~DN2800
2. Range of rate:0.01m/s~12m/s
3. Accuracy:Level 0.25
4. Low-frequency square wave or High-frequency Excitation
Excitation frequency:3.125Hz,6.25Hz,
12.5Hz,25Hz
5. Excitation Current:100mA ~500mA,Default 160mA or 250mA

DC3.6V powered mag flowmeter enjoy good accuracy with ¡À0.5%, battery flow meter provides with 3-5 years continuous battery operation, flowmeter easy easy maintain in operation. Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ; Ambient Temperature: -20¡æ~+60¡æ; Ambient Humidity: 5-100%RH (relative humidity);

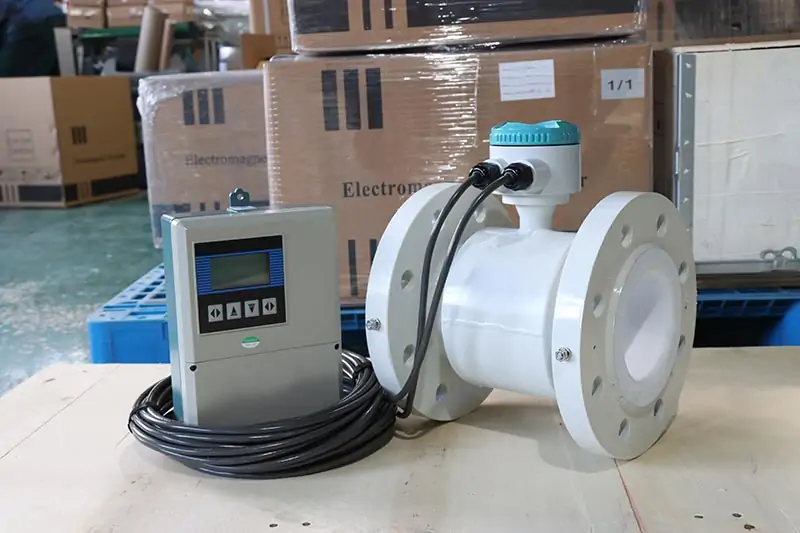

Standard cable length or remote or split electromagnetic BTU meter is 10m, max length is 120m, Pt1000 temerature sensor is configured. Magnetic heat meter is composed by transmitter, sensor and PT1000 temperature sensor, which can monitor flow and energy of hot water and cold water, standard configuration of flange and sensor shell is carbon steel, SS304 and SS316L are optional.
Size: 1/8″-120″
Accuracy: ¡À0.5%
Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote

12VDC power supply magnetic flowmeter digital type water flow meters
consists of sensors and converters in two parts. The product is based on Faraday’s law of electromagnetic induction used to measure the conductance greater than 20 μS / cm volume of conductive liquid flow, In addition to measuring the general volume of conductive liquid flow, but also can be used to measure strong acid, alkali and other strong corrosive liquids and mud, pulp, pulp and other liquid-solid two-phase suspension of uniform volume flow.

Q&T series electromagnetic flow meter has a backlight and a wide temperature-ranged Chinese LCD display. With fully practical function, visual display, easy operation, it saves troubles for on-site installation operation and maintenance. Q&T series electromagnetic flow meter can be widely used in industrial fields such as petroleum, chemical, metallurgy, water supply and drainage, steel, coal, paper, food, textile, environmental protection and other municipal administration, water conservancy construction field etc.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Battery power mag flow meter’s service life is 3 to 5 years, DC3.6V powered electromagnetic flow meter fulfills the customer demands to water application, revenue metering and irrigation. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Measuring Range: Max 15m/s; Conductivity: >5us/cm; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional);

Battery powered magnetic flowmeter mainly used in water applications.Q&T’s standard lithium battery for magnetic flow meter can be used for up to three or five years of operation. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Liner: PTFE, Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Structure: Integral,remote,submersible,ex-proof; Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Display of mag flowmeter is LCD, OLED is optional, liner is PTFE or Neorpene, agnetic flow meters (also known as magmeter or electromagnetic flow meters) are cost effective volumetric flow meters that do not have any moving parts. Q&T Instrument was established in 2005, products including mag flowmeter, turbine flow meter, ultrasonic flow meter, thermal mass flow meter, etc. We offer flowmeters with a range of liners, electrodes, and sizes, which can meet various conductive liquids.

Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse

DC3.6V powered mag flow meter used in process measurement and control, leak detection, etc.Insertion battery magnetic flow meter specially for large diameter pipeline save cost. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner:PTFE,Neoprene,Hard Rubber,EPDM,FEP,Polyurethane, PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Electromagnetic water meter is widely used in the fields of petroleum, chemical industry, metallurgy, textile, pharmacy, food and beverage, paper making, electric power, urban water supply and drainage and environmental protection.
Customized colors for all electromagnetic flow meters
DN50-DN300 wide ranges.
Modbus RS485,pulse output
Drink water, waste water, sea water, beer, juice, chemical and conductive liquids.

Standard confirguration of mag flowmeter is PTFE, it has been approved NSF and FDA with food grade, QTLD mag flowmeter will be tested in high and low cabinet, temperature is : -20¡æ ~ 60¡æ for 24 hours. We have 17 years manufacturing expericen, can meet variouls requirement on flow measurement.
Size: 1/8″-120″
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

3.6V battery powered magnetic flow meter enjoy good accuracy with ¡À0.5%, 3.6V battery powered mag flow meter provides with 3-5 years continuous battery operation. Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ; Ambient Temperature: -20¡æ~+60¡æ; Ambient Humidity: 5-100%RH (relative humidity);

Q&T series insert type electromagnetic flowmeter is on the basis of pipeline electromagnetic flowmeter developed a kind of new flow meter.
After adopting the technology of pressure opening and pressure installation, the plug-in electromagnetic flowmeter can be installed without stopping water, and can also be installed on cast iron pipes and cement pipes. The successful development of plug – in electromagnetic flowmeter provides a new method for fluid flow measurement.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

electromagnetic flowmeter can be integrated type and split type, standard cable length is 10m and max cable length is 120m. it can be submerged in the water. QTLD magnetic flowmeter can be customized color and logo, we are OEM for some Europmean and Amercial brands.
Size: 1/8″-120″
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Measuring tube: SS304

Accuracy of electromagnetic flowmeter is ¡À0.5% standard, ¡À0.2% is optional, lelectromagnetic flow meter is calibrated on ¡À0.2% accuracy calibration device, inline magnetic flow meter is calibrationed 5 points by comparison method or mass method. our calibration lab has been approved CNAS ISO/IEC 17025:2017.

Size: DN3-DN3000
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Protection Grade: IP65 std, IP68 optional for remote
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)

Electromagnetic flowmeter is a commonly used pipeline measuring instrument, which can not only provide flow velocity measurement parameters but also output output results. At present, electromagnetic flowmeters have been widely used in flow velocity measurement in my country’s dredging industry..

Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

“Q&T series Electromagnetic flowmeters for the accurate flow measurement of any conductive fluid, Ideally suited to water and waste water treatment plants, mining and general industry.Q&T series Electromagnetic flowmeters transmitter display guides operator with menu prompts during configuration.
Comprehensive output options, Include multiple analogue, relay, digital and serial outputs.”
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Q&T series Electromagnetic flowmeters for the accurate flow measurement of any conductive fluid, Ideally suited to water and waste water treatment plants, mining and general industry.Q&T series Electromagnetic flowmeters offer a high quality, economic and solid state solution for measuring flow in areas where flow sensors with moving parts cannot be applied.

Size:DN3-3000mm
Material:Carbon Steel SS304 S316
Dual Power:24V/220V
Nominal Pressure: 0.6-1.6Mpa(Max 42Mpa)
Accuracy: +/-0.5%(Standard)0.2% (Optional)
Liner: PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA
Electrode Material:SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium
Output Signal: 4-20mA/Pulse
Ambient Temperature:-20~+60deg C

The Magnetic Flow Meter has bidirectional measuring system and is installed with three totalizers: forward total volume, reverse total volume and total difference; This digital water flow meter can display forward flow and reverse flow volume, and has multiple outputs: current, pulse, digital communication Modbus, HART etc

Specifications:
Accuracy: 0.20%，0.10%
Medium Temperature: -50…200℃
Nominal pressure: 0…4.0MPa
Material : Measuring tube SS316L; Housing: SS304
Process Connection: Flange, Tri-clamp Connection, Thread
Power supply: 24V DC±5% or 220V AC ± 10% 50Hz
Working condition: Ambient temperature: – 20~60℃
Relative humidity: ≤95%
Protection Grade: IP67
Instrument display: mass flow, volume flow, density, temperature

waste water electromagnetic flow meter waste water electromagnetic flow meter sensors and converters in two parts. The product is based on Faraday’s law of electromagnetic induction, used to measure the conductance greater than 20 μS / cm volume of conductive liquid flow,
Medium temperature:
Integral type : -20℃~60℃
Remote type(Rubber&Polyurethane liner): -10℃~80℃
Remote type (PTFE&PFA&F46 liner): -10℃~160℃
♦ Integrated verification,diagnostic function and empty pipe detection.
♦ Measure forward and reverse direction flows.
♦ Built-in reference electrodes,no need to connect ground ring.

Q&T series easily accessible transmitter offers high flexibility for operation and system integration. The transmitter features access from one side, a remote display, and improved connectivity options.Q&T series electramanetic flow meter have also been integrated with series of communication protocols i.e. RS485, RS232, HART and MODBUS.

Size:DN3-3000mm
Material:Carbon Steel SS304 S316
Dual Power:24V/220V
Nominal Pressure: 0.6-1.6Mpa(Max 42Mpa)
Accuracy: +/-0.5%(Standard)0.2% (Optional)
Liner: PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA
Electrode Material:SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium
Output Signal: 4-20mA/Pulse
Ambient Temperature:-20~+60deg C

Battery operated mag flowmeter enjoys ¡À0.5% accuracy, installation should be away from pumps,tees,elbows,valves,etc., battery operated mag flow meter front straight pipeline 5D, rear 3D. Size: DN10-DN2000; Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);
