Flow Meter

Magnetic flow meter is designed to measure the volume flow of conductive liquids in closed pipelines, it is comprised of a transmitter and magnetic flow sensor that together measure flow. It is high accuracy and reliability. It is a good choice for digital water flow meter.

Specifications:
Accuracy: 0.5%, optional 0.2%
Signal output: 4~20 mA, pulse
Power supply: 220VAC, 24VDC
Body material: Carbon steel
Liner material: PTFE, FEP, PFA, CR, hard rubber, PU, FLS
Electrode material: SUS316L, HC, HB, Ti, Tan, Pt
Connection: Flange, thread, wafer, tri-clamp, union
Protection grade:IP65 / IP 68(optional)
Meddium temperature: -20~120℃
Certification:CE,ATEX

Handheld Ultrasonic Flowmeter Clamp on Flow Meter Portable Liquid Flow Meter with small transducer to measure flow rate through the pipe wall, the transit time ultrasonic flow principle. It is a 3.6V battery powered ultrsonic flow meter, for using on a wide range of sizes and can provide 24 hours measurement continuely. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Built-in rechargeable battery 3.6V 2000 lines storage Communication: RS232

QTDS-100H Portable Clamp-on Ultrasonic Flow Meter is a ideal for liquids such as chemical,visous liquids, and sea water. The non-intrusive, clamp-on ultrasonic flow meter fits pipes between 1/2″ to 48″ internal diameter. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Medium: clean liquids,pure water Built-in rechargeable battery 3.6V Measurment unit: Meter, Feet,Cubic Meter.

Handheld Ultrasonic Flowmeter Clamp on Flow Meter Portable Liquid Flow Meter with small transducer use ultrasonic technology to measure the velocity of the liquid. Ultrasonic meters are avaiable as clamp-on solutions. Non pipe cutting, this ultrasonic flow meters can display velocity and accumulated flow. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Medium: clean liquids,pure water Built-in rechargeable battery 3.6V Housing Material: ABS

Portable clamp on ultrasonic flow meter can be easily installed, removed and transported. This flowmeter makes them ideal for industrial applications that are already operational or only require occasional flow measurement. In the latter case, the user can use the same clamp on flowmeter to measure flow in multiple locations by unloading and transporting the device for each measurement Measuring accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Built-in rechargeable battery 3.6V Communication: RS232

Handheld ultrasonic flow meter with clamp on Middle transducer is easy and accurate flow measurement without interrupting the process, Clamp-on type transducer easily mountable on existing pipes, non-invasive type.Suitable for most of applications. Measuring accuracy: +/-1.0% of FS Transducer temperature: -30~90¡ãC/-30¡ãC~160¡ãC Measuring clean liquids Built-in rechargeable battery 3.6V Communication: RS232

Clamp on ultrasonic flow meter are widely used in tap water, heating, water conservancy, metallurgy, chemical industry, machinery, energy and other industries. Portable Hand Held Ultrasonic Flow Meter can be used for production monitoring, flow verification, temporary detection, flow inspection, water meter balance debugging, heat network balance debugging, and energy-saving monitoring. Measuring accuracy: +/-1.0% of FS Transducer temperature: -30~90¡ãC/-30¡ãC~160¡ãC Measuring clean liquids Battery-powered,for 12 hours Communication: RS232

Ultrasonic flow meter with RS232 communication for clean liquid is a non-contact instrument, which can measure the flow of medium with large diameter and can also be used for the measurement of medium that is not easy to contact and observe. Its measurement accuracy is very high, and the external clip-type installation can reach the highest accuracy of ¡À1.0%. It is almost not disturbed by various parameters of the measured medium, especially it can solve the strong corrosiveness, non-conductivity, Flow measurement of radioactive and flammable and explosive media. Measuring accuracy: +/-1.0% of FS Transducer temperature: -30~90¡ãC/-30¡ãC~160¡ãC Measuring clean liquids Battery-powered,for 12 hours Communication: RS232

Handheld ultrasonic flow meter for water medium is a portable liquid flow measurement device with a sensor. Handheld ultrasonic flow meter for water medium proven transit-time ultrasonic measurement technology for superior accuracy and ease of installation and installation. This easy-to-use flowmeter comes in a rugged, waterproof carrying case for easy transport of the display, sensor, and cables between measurement locations. High accuracy +/-1.0% of FS Transducer temperature: -30~90¡ãC/-30¡ãC~160¡ãC Measuring clean liquids Battery-powered,for 12 hours Communication: RS232

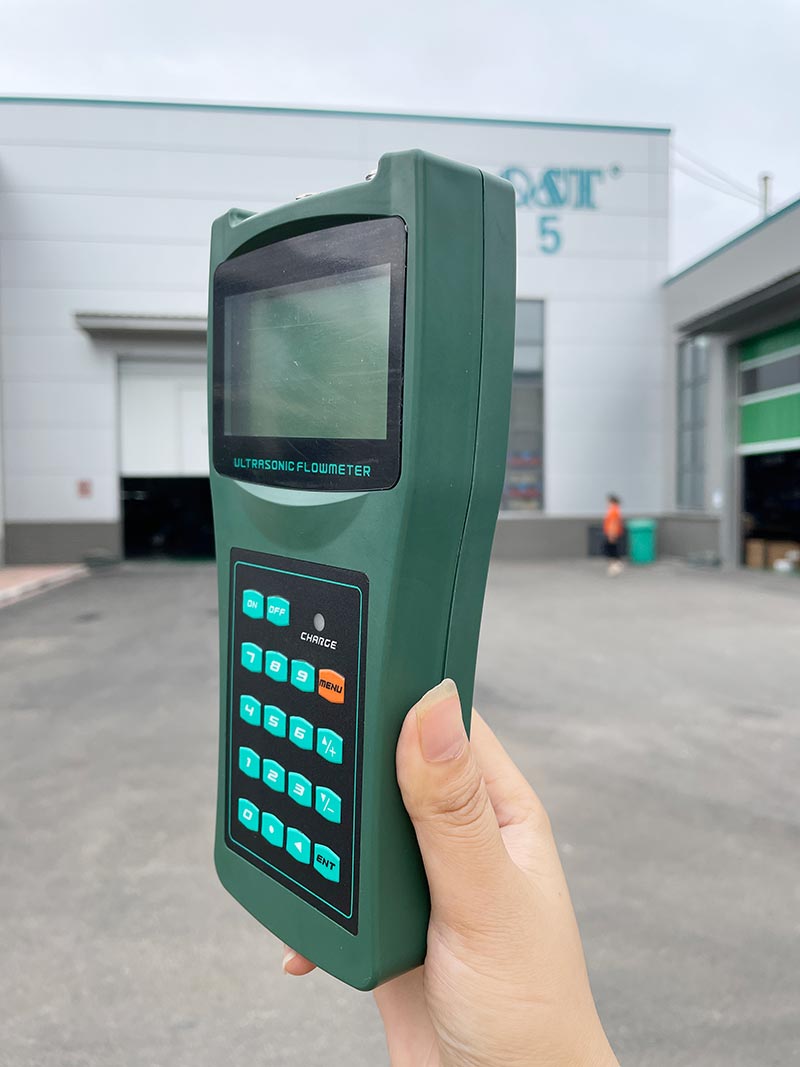

QTDS-100H handheld ultrasonic flow sensor with output oil flow meter is a portable liquid flow measurement device with a sensor. QTDS-100H handheld ultrasonic flow sensor with output oil flow meter Price, Digital ultrasonic flowmeters with S2 transducers measurement technology for superior accuracy and ease of installation and installation. This easy-to-use flowmeter comes in a rugged, waterproof carrying case for easy transport of the display, sensor, and cables between measurement locations. High accuracy +/-1.0% of FS Transducer temperature: -30~90¡ãC/-30¡ãC~160¡ãC Measuring clean liquids Battery-powered,for 12 hours Communication: RS232

Ultrasonic flow sensor measurement electromagnetic flowmeter is a portable liquid flow measurement device with a sensor. Ultrasonic flow sensor measurement electromagnetic flowmeter with S2 transducers measurement technology for superior accuracy and ease of installation and installation. This easy-to-use flowmeter comes in a rugged, waterproof carrying case for easy transport of the display, sensor, and cables between measurement locations. High accuracy +/-1.0% of FS Transducer temperature: -30~90¡ãC/-30¡ãC~160¡ãC Measuring clean liquids Battery-powered,for 12 hours Communication: RS232

China wall mounted Clamp on pipe ultrasonic water flow meter price provide you with an accurate, easy-to-install flow meter. wall mount flow sensor feature quick, easy clamp-on sensor installation, configuration, and a user-programmable menu-driven interface for easy commissioning in the field. China wall mounted Clamp on pipe ultrasonic water flow meter price use a special algorithm and technology to ensure highly accurate flow measurement. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring single clean liquids Power supply: 24VDC/85VAC-2265AC Storage: SD card optional Heat meter optional

Digital wall Mounted Ultrasonic Water Liquid Flow Meter measure flow by propagating ultrasonic waves into a liquid-filled pipe. Digital wall Mounted Ultrasonic Water Liquid Flow Meter are located outside the pipeline and offer a wide range of pipeline sizes with no pressure loss, no contact with the liquid inside, and no moving parts. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm None cut down pipe Power supply: 24VDC/85VAC-2265AC Communication: RS485

Digital Ultrasonic flowmeter river water type ultrasonic flowmeter is a high precision no-cut tube measurement method. This special design includes matching sensors for ease of use and is ideal for installation in existing systems Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring single clean liquids Power supply: 24VDC/85VAC-2265AC Storage: SD card optional Heat meter optional

Ultrasonic water flowmeter for liquid ultrasonic flow meter consists of two parts: a transmitter unit and a transducer. Magnetic external clamps on the sensor are easy to install and connect to metal tubing for continuous flow measurement. It is especially suitable for on-site flow measurement of various pressure requirements. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

Wall Mounted ultrasonic liquid flowmeter Clamp on transducer adopts the self-development measurement technology.This measurement technique is a faster and more accurate process time measurement. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring single clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

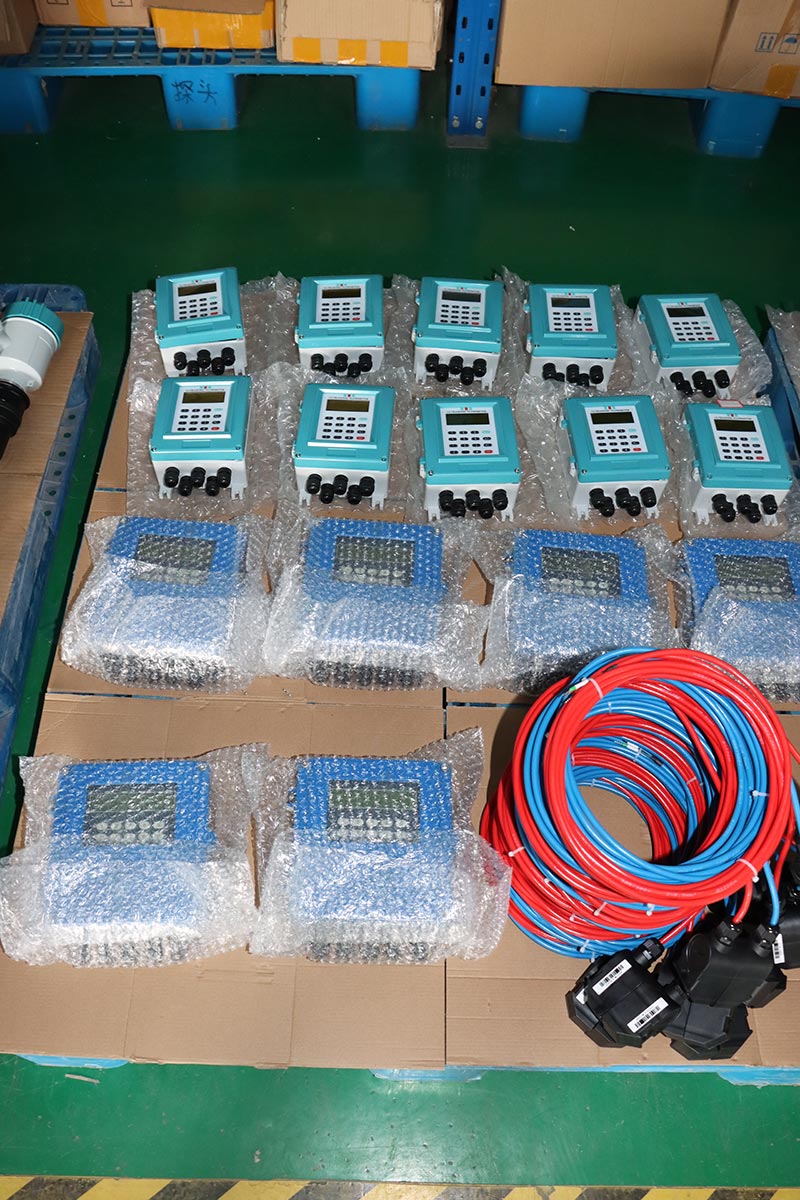

Q&T fixed ultrasonic RS485 flowmeter type with medium flow sensor provide you with an accurate, easy-to-install flow meter. wall mount flow sensor feature quick, easy clamp-on sensor installation, configuration, and a user-programmable menu-driven interface for easy commissioning in the field.Q&T fixed ultrasonic RS485 flowmeter type with medium flow sensor use a special technology to ensure highly accurate flow measurement. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring single clean liquids Power supply: 24VDC/85VAC-2265AC Storage: SD card optional Heat meter optional

Ultrasonic flowmeter wall mounted water flow meter Modbus RS485 communication measure flow by propagating ultrasonic waves into a liquid-filled pipe. Ultrasonic flowmeter wall mounted water flow meter Modbus RS485 communication are located outside the pipeline and offer a wide range of pipeline sizes with no pressure loss, no contact with the liquid inside, and no moving parts. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm None cut down pipe Power supply: 24VDC/85VAC-2265AC Communication: RS485

Q&T Wall mounted ultrasonic flowmeter clamp on type transducer is a high precision no-cut tube measurement method. This special design includes matching sensors for ease of use and is ideal for installation in existing systems Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring single clean liquids Power supply: 24VDC/85VAC-2265AC Storage: SD card optional Heat meter optional

Wall Mounted Ultrasonic flow sensor Water Clamp on flow meter consists of two parts: a transmitter unit and a transducer. Magnetic external clamps on the sensor are easy to install and connect to metal tubing for continuous flow measurement. It is especially suitable for on-site flow measurement of various pressure requirements. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

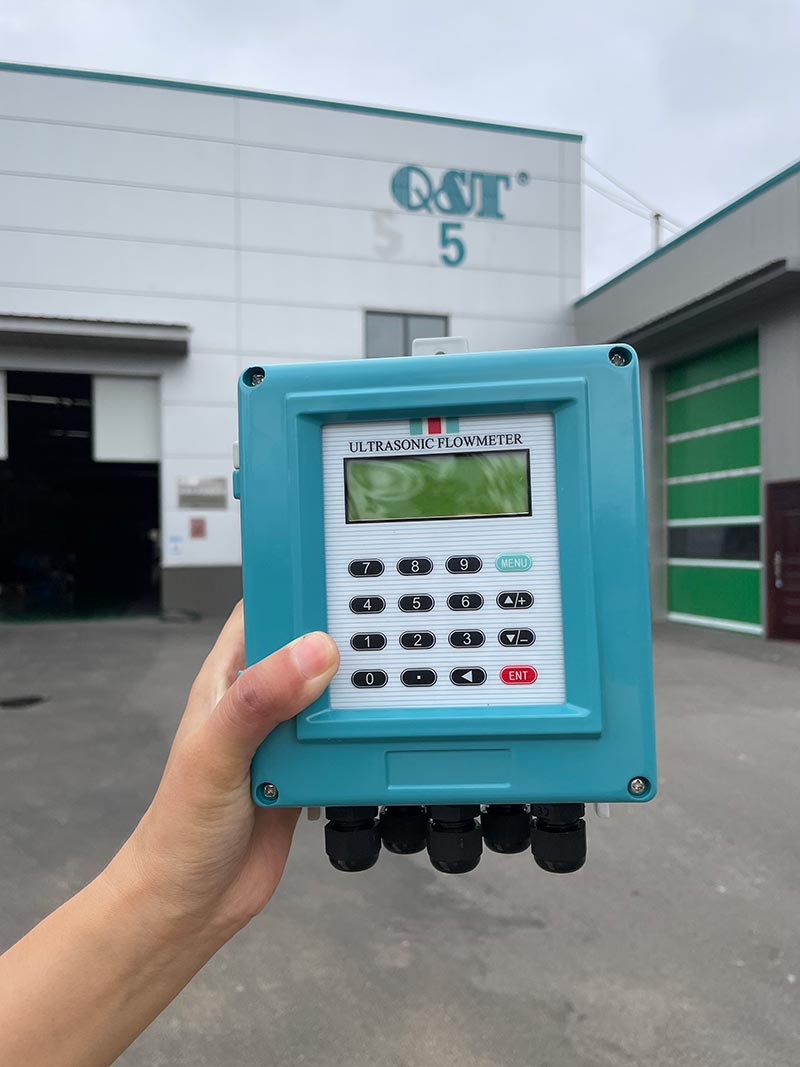

Digital fixed ultrasonic flow meter water flowmeter price is a portable liquid flow measurement device with a sensor. Digital fixed ultrasonic flow meter water flowmeter price proven transit-time ultrasonic measurement technology for superior accuracy and ease of installation and installation. Digital fixed ultrasonic flow meter water flowmeter price comes in a rugged, waterproof carrying case for easy transport of the display, sensor, and cables between measurement locations. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring single clean liquids Power supply: 24VDC/85VAC-2265AC Storage: SD card optional Heat meter optional

Wall mounted ultrasonic flow meter water flowmeter with 4-20mA RS485 communication is simple to install and is suitable for large diameter pipes requiring monitoring and flow measurement, as well as a wide network of smaller supply lines.Wall mounted ultrasonic flow meter water flowmeter with 4-20mA RS485 communication provide the tools needed to meet the diverse requirements of such a demanding industry. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

Wall Mounted ultrasonic flowmeter proven transit-time ultrasonic measurement technology This technology can be used for permanent installations where intrusive flow meters are not economically viable for permanent installations on large pipelines and for all the different process fluids encountered in the network. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

Fixed type clamp on ultrasonic flowmeter with RS485 Modbus flow meter is an ultrasonic flowmeter used to measure the flow rate of liquids in closed pipes. The transducer is a non-contact, clamp-on type, which will provide the benefits of contamination-free operation and ease of installation. The transit time flowmeter employs two transducers, which act as ultrasonic transmitters and receivers. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

DN80mm ultrasonic flowmeter water flow mter is an ultrasonic flowmeter used to measure the flow rate of liquids in closed pipes. The transducer is clamp-on type, which will provide the benefits of contamination-free operation and ease of installation. The transit time flowmeter includes two transducers, which act as ultrasonic transmitters and receivers. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

QTDS-100F wall mounted ultrasonic water flowmeter seawater flow meter adopts the self-development measurement technology.This measurement technique is a faster and more accurate process time measurement algorithm. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring single clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

QTWG series gas turbine meters offer high quality natural gas measurement which could increase efficiency in gas transmission, distribution and industrial applications. Turbine gas meters are wIth built in temperature and pressure compensation ensure accurate measurment in standard conditions. The turbine meters are designed to accurately measure natural gas, air, nitrogen, carbon dioxide, propane vapor, and other non-corrosive gases for large volume commercial and industrial uses.

Size:DN25-400mm
Material:Aluminum alloy or stainless steel
Dual Power:3.6V battery powered+DC24V
Output:4-20mA,Pulse,RS485
Accuracy:1.5% or 1.0%

QTWG series turbine gas meters are with the features of low pressure loss, high accuracy and good anti-vibration. Widely used for gas-fired, gas pipeline network, and city gas field etc, turbine gas meters offer high capacity ability for various custody transfer applications. Your one-stop shop for?turbine flow meter?solutions with field-tested reliability, accuracy, repeatability, and value from the leading?flow meter?company.

Size:DN25-400mm
Material:Aluminum alloy or stainless steel
Dual Power:3.6V battery powered+DC24V
Output:4-20mA,Pulse,RS485
Accuracy:1.5% or 1.0%

QTWG turbine gas flow meters are designed to accurately measure natural gas, air, nitrogen, carbon dioxide, propane vapor, and other non-corrosive gases for large volume commercial and industrial uses. they are ideal flow measurement device for clean gas, including natural gas, LPG gas etc. With user-friendly display, support of flowrate, temperature, pressure each in operating and standard status. Turbine gas meters support a wide range of measurement including maximum working pressure and maximum measuring flow rate.

Size:DN25-400mm
Material:Aluminum alloy or stainless steel
Dual Power:3.6V battery powered+DC24V
Output:4-20mA,Pulse,RS485
Accuracy:1.5% or 1.0%

QTWG Turbine gas meter volume measuring instruments for gaseous media and operate according to the displacement principle. They register the gas volume under working conditions. In order to correct the measured value to the standard volume, electronic volume correctors can be used.Turbine gas meters deliver high accuracy in gas flow measurements, which could highly inrease the efficiency in various custody transfer applications.

Size:DN25-400mm
Material:Aluminum alloy or stainless steel
Dual Power:3.6V battery powered+DC24V
Output:4-20mA,Pulse,RS485
Accuracy:1.5% or 1.0%
