Drink water ODM battery operated magnetic flow meter

There are no moving parts and no choke parts in the pipeline, and there is almost no additional pressure loss in the measurement. The measurement result has nothing to do with physical parameters such as velocity distribution, fluid pressure, temperature, density, viscosity, etc.
High-quality ABS, backlit LCD simultaneously displays
instantaneous flow and accumulated flow, instantaneous heat andaccumulated heat, flow rate, time and other data non-contactmeasurement, accurate measurement

Forward and reverse flow measurement.
Measure pulp and slurry, water and wastewater, food and beverage, acid and alkaline.
Multiple output communication (pulse, GPRS, RS485),

QTLD insertion electromagnetic flow meter is best choice for large pipe size to save cost.

inline magnetic flow meter is composed by magnetic flow meter and pt1000 temeprature sensor, can calibrated on liquid test bench, standard accuracy is ¡À0.5%

Electromagnetic water meter be used to measure the volume flow of strongly corrosive liquids such as strong acids and alkalis and smooth liquid-solid two-phase suspension liquids such as mud, mineral pulp, and paper pulp. It is widely used in flow measurement in petroleum, chemical, metallurgy, textile, paper and others.
High definition LCD display with backlight.
RS485 or RS232 interface supports digital communication.
Intelligent empty pipe detection and electrodes resistance measurement diagnosing
empty pipe and electrodes contamination accurately.

Q&T series superior sensor design withstands the harshest environmental conditions. Industry optimized liner and electrode materials and resistance to abrasion and corrosion.Q&T series Digital Magnetic Flow Meter has the long-term high accuracy of measurement. It actually is not affected by fluid physical properties. Measurement accuracy can be up to 1%, 0.5%

Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

QTLD/C isnertion magnetic flow meter can be installed without cutting off flow.

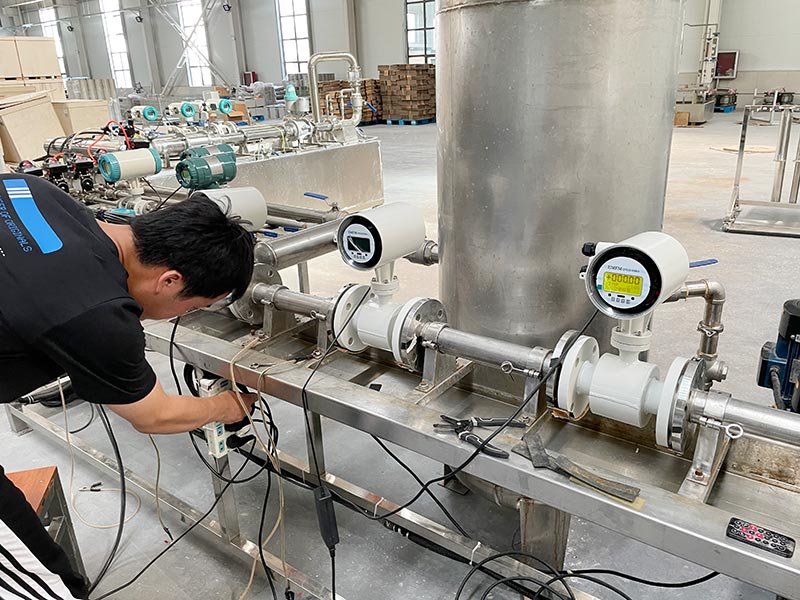

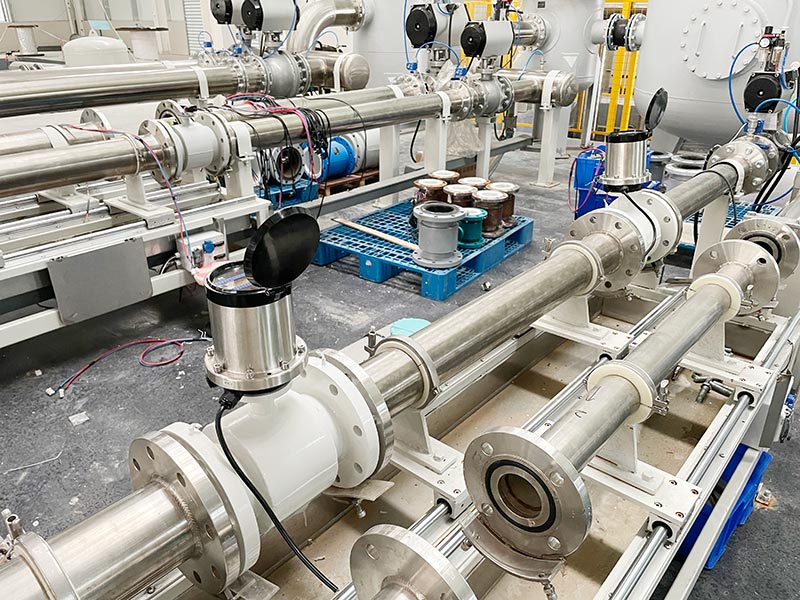

water flow meter can be calibrated 8 pcs at the same time, while 5 points flow will be calibrated, all test bench has been approved ISO 17025.

inline magnetic flow meter can work in -40~150¡æ, All transmitters will be tested in the high and low temperature sensor cabinet, there is an electromagnetic coil that generates a magnetic field, and electrodes that capture electromotive force(voltage), Structure of magmeter can be compact or remote with, battery is 85~265 VDC / 85~265VAC / 3.6V lithium battery.

Accuracy: ¡À0.5%
Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic

Min size of insertion magnetic flowmeter is DN50 / 2″, it can be powered by AC/DC/3.6V lithium battery. insertion magnetic flowmeter can configure thread or flange ball valve to be hot-tapped, which allows sensor to be installed and retracted from process piping without shutting down the process.

Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Protection Grade: IP65 std, IP68 optional for remote
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

1):Measurements are unaffected by changes in fluid density, viscosity, temperature, pressure and conductivity.
2):No obstruction of fluid components in the measuring tube, no pressure loss, low requirements for straight pipe section

Q&T series electromagnetic flow meter has a backlight and a wide temperature-ranged Chinese LCD display. With fully practical function, visual display, easy operation, it saves troubles for on-site installation operation and maintenance. Q&T series electromagnetic flow meter can be widely used in industrial fields such as petroleum, chemical, metallurgy, water supply and drainage, steel, coal, paper, food, textile, environmental protection and other municipal administration, water conservancy construction field etc.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Mag flowmeter battery powered can be used in process measurement and control, leak detection, etc.Battery Insertion Magnetic flowmeter usually for large diameter pipeline save cost. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner:PTFE,Neoprene,Hard Rubber,EPDM,FEP,Polyurethane, PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Mag flowmeter battery’s service life is 3 to 5 years, magnetic flow meter battery powered fulfills the customer demands to water application, revenue metering and irrigation. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Measuring Range: Max 15m/s; Conductivity: >5us/cm; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional);

Electromagnetic flowmeter can measure liquid which conductivity is higher than 5 ¦ÌS/cm, demineralized water should be higher than 20 ¦ÌS/cm. magnetic flowmeter can display Instantaneous flow, total flow, flow velocity, bidirection, etc.
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote

magmeter measure the volume flow, flow rate, and temperature with very precise measurement results for optimized processes. our calibration lab has been approved CNAS ISO/IEC 17025:2017. Q&T Instrument has large stock fro varous flanges for different water flow meters, like magnetic fflow meter, turbine flow meter, oval gear flow meter, etc.

Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

magmeter is calibrated on ¡À0.2% accuracy liquid calibration device, electromagnetic flowmeter is calibrationed 5 points. our calibration lab has been approved CNAS ISO/IEC 17025:2017. magmeter is calibrated by MT methoud water flow standard calibration device, mass method, comparison method and pulse method can be used, standard accuracy is ¡À0.5%, ¡À0.2% accuracy is optional.

Size: 1/8″-120″
Electrode: SUS316L, Hastelloy B, Hastelloy C
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

liquid flow meter is a commonly used pipeline measuring instrument, which can not only provide flow velocity measurement parameters but also output output results. Reasonable selection of sensor lining and electrode materials, that has good corrosion resistance and wear resistance.

Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis.

Various liner materials are available:PTFE, FEP, PFA, F46, Rubber
Wide rang in communication:RS485, Modbus, ,GPRS
IP68 protection class is for remote type

QTLD water flow meter is calibrated by ISO/IEC 17025:2016 CNAS Approved Test Bench.

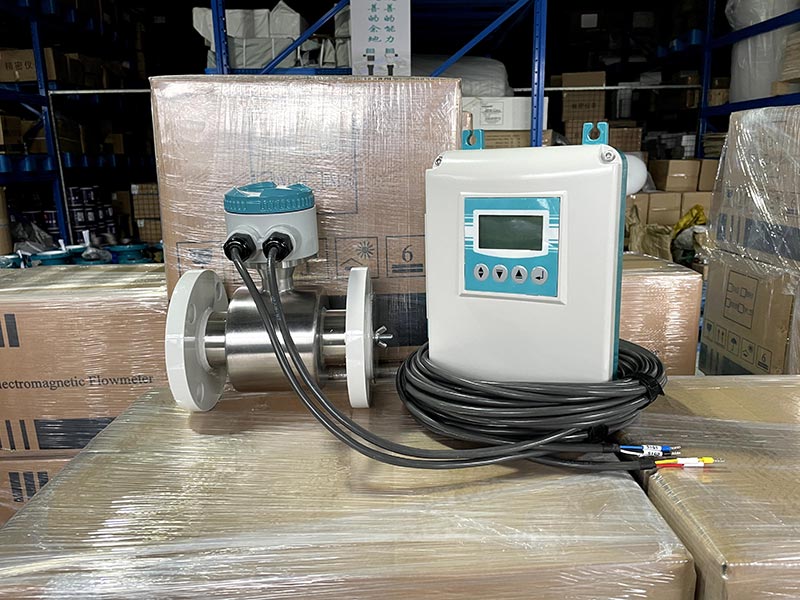

Pulse width of remote magmeter can be customized, standard cable is 10m, max length is 120m, electromagnetic flow meter is mainly used to measure beverage. liner can be PTFE or rubber,
waste water flow meter can add pt1000 temeprature sensor to be magnetic btu meter to monitor flow and btu of hot water and cold water, can calibrated on liquid test bench, standard accuracy is ¡À0.5%
Size: 1/8″-120″
Electrode: SUS316L, Hastelloy B, Hastelloy C
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

Remote transmitter of electromagnetic flowmeter is explosion proof with Atex certificate. Standard confirguration of inline magnetic flowmeter is PTFE, it has been approved NSF and FDA with food grade, QTLD mag flowmeter will be tested in high and low cabinet, temperature is : -20¡æ ~ 60¡æ for 24 hours Signal out inline magnetic flow meter is 4~20 mA, Pulse, RS485 Modbus RTU standard. GPRS, HART, Profibus DP or PA are optional. Various types of instruments are usually used for data monitoring in industrial production, and electromagnetic flowmeter is one of the common instruments

Size: 1/8″-120″
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Measuring tube: SS304

DC3.6V powered magnetic flow meter enjoys IP68 protection, 3.6V mag flowmeter workable under water for few days, flow meter can add external 12-24 V DC power supply with 4-20mA. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) :-10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP): -10¡æ~+160¡æ; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional), HART(Optional), GPRS/GSM (Optional);

Magnetic flowmeter operate under the principle of Faraday’s Law of Electromagnetic Induction to measure liquid velocity. Following Faraday’s Law, magnetic flowmeters measure the velocity of conductive liquids in pipes, such as water, acids, caustic, and slurries. In order of usage, magnetic flowmeter use in water/wastewater industry, chemical, food and beverage, power, pulp and paper, metals and mining, and pharmaceutical application.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote

Magnetic flowmeter battery powered special for the area without AC220V/DC24V power supply, mag flow meter battery powered transfer and monitor data via 4-20mA,Pulse, RS485, GPRS. etc. Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa);
Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional);
Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA;
Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium;
Structure: Integral,remote,submersible,ex-proof;
Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ;
Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ;
Ambient Temperature: -20¡æ~+60¡æ;

magnetic flow meters (mag meters, electromagnetic flow meters) are a sensorthat measures fluid flow by the voltage induced across the liquid by its flow through a magnetic field. A magnetic field is applied to the metering tube.
Size: DN3-DN3000
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm

QTLD PTFE lining material has been approved NSF and FDA.

waste water flow meter magmeter is calibrated by MT methoud water flow standard calibration device, mass method, comparison method and pulse method can be used, standard accuracy is ¡À0.5%, ¡À0.2% accuracy is optional.

magmeter can be powered by AC/DC/3.6V lithium battery. Inline flow meter is widely used for conductive liquids which conductivity is high than 20 ¦ÌS/cm, size is DN3-DN3000, which can be used various pipes. the sensor isSS304 or SS316 and lined with PFA. With tri-clamp, the magnetic flow meter can be installed and torn down easilyto clear, it meet the strict requirements of food-processing and pharmaceutical industries.

Size: 1/8″-120″
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

The converter of electromagnetic water meter adopts MCU and SMTtechnology£¬with reliable performance£¬high precision£¬low powerconsumption£¬stable zero point and convenient parameter setting.
Self-diagnosis fault alarm
GSM data infinitely transmitted
LCD display cumulative flow£¬instanta-
neous flow£¬ flow rate,flow percentage,etc.

electromagnetic flowmeter is unaffected by changes in fluid density, viscosity, temperature, pressure and conductivity. There are no obstructing flow parts in the measuring tube, no pressure loss, and lower requirements for straight pipe sections. mag flowmeter is calibrated by standard mass method by high accuracy calibration equipment. standard accuracy is ¡À0.5%, ¡À0.2% accuracy is optional.

Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm

Battery operated magnetic flowmeter can be used in process measurement and control, leakage detection, etc.Insertion battery powered mag flow meter usually for large pipe diameter above DN100. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner:PTFE,Neoprene,Hard Rubber,EPDM,FEP,Polyurethane, PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Battery powered electromagnetic flow meter satisfy urban water supply to ensure accurate water fee calculation,Battery powered magnetic flow meter is widely used in no power supply region. Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard), IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard),1.5W(with DC24V);
