DN600 Best Quality China Manufacturer Sewage Waste Slurry Water Electromagnetic Flow Meter

magnetic flow meter (mag meter, electromagnetic flow meter) is a transducer that measures fluid flow by the voltage induced across the liquid by its flow through a magnetic field. A magnetic field is applied to the metering tube, which results in a potential difference proportional to the flow velocity perpendicular to the flux lines. The physical principle at work is electromagnetic induction. The magnetic flow meter requires a conducting fluid, for example, water that contains ions, and an electrical insulating pipe surface, for example, a rubber-lined steel tube.
If the magnetic field direction were constant, electrochemical and other effects at the electrodes would make the potential difference difficult to distinguish from the fluid flow induced potential difference. To show this in modern magnetic flowmeters, the magnetic field is constantly reversed, cancelling out the electrochemical potential difference, which does not change direction with the magnetic field. This however prevents the use of permanent magnets for magnetic flowmeters.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.

Standard confirguration of mag flowmeter is PTFE, it has been approved NSF and FDA with food grade, QTLD mag flowmeter will be tested in high and low cabinet, temperature is : -20¡æ ~ 60¡æ for 24 hours. We have 17 years manufacturing expericen, can meet variouls requirement on flow measurement.
Size: 1/8″-120″
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

Electromagnetic water meter is used to measure the flow of conductive fluid in watersupply,steel£¬petroleum,chemical industry,electric power£¬industry£¬water conservancyand other departments.

DC3.6V powered magnetic flow meter with 5 years service life,3.6V powered mag flow meter fulfills the special customer demands to water application with distribution network as well as irrigation. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Measuring Range: Max 15m/s; Conductivity: >5us/cm; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional);

Q&T series of intelligent hygienic electromagnetic flow meter is a high performance, high reliability flow meter for measuring the volumetric flow of conductive liquids and slurries in closed conduits. Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy, Papermaking, water supply and drainage, food, medicine and other industries.

Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Measurement of magmeter is independent of fluid density, viscosity, temperature, pressure, and conductivity. Two measuring points inside the meter with no moving parts to eliminate pressure drop, Capable of measuring electric conductive liquid and fluids with low solid contents. water flow meter is calibrated by Mass Method liquid calibration equipment, which is approved by CNAS ISO 17025, which is mutual recognition by ilac-MRA.

Size: 1/8″-120″
Electrode: SUS316L, Hastelloy B, Hastelloy C
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

insertion electromagnetic flow meter is used to measure the flow of conductive liquids. It is available for use in pipes ranging in size from DN100 to DN3000, insertion magnetic flowmeter can configure thread or flange ball valve to be hot-tapped, which allows sensor to be installed and retracted from process piping without shutting down the process.
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote

electromagnetic flowmeter is composed by transmitter and sensor. standard configuration is carbon steel sensor, SS316L electrodes and PTFE liner. A magnetic flowmeter 41 calibrator simulates the signal provided by the electrodes in the flow tube. The operating voltage and frequency range of the calibrator must match those of the magnetic flowmeter. Select the maximum output signal using the calibrator range switch.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Structure: compact, remote
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

3.6V magmeter’s accuracy is affected by disturbances such as pumps,tees.elbows,valves, etc.,Install DC3.6V powered electromagnetic flow meter in pipes with enough straight line. Size: DN10-DN2000; Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

No Moving Parts
RS485 Standard,HART standard is available.
Suitable for Pipes Up to DN300
Pulse, Gprs output
Standard 5 points calibration Included

The diameter of the magnetic heat meter is wider than other types of flowmeters, DN3-DN3000. It can measure the forward and reverse bidirectional flow, as well as the pulsating flow. magnetic energy meter don’t have any moving parts to wear down, reducing the need for maintenance or replacement. We offer flowmeters with a range of liners, electrodes, and sizes, which can meet various conductive liquids.

Accuracy: ¡À0.5%
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s

Electromagnetic flowmeter can measure liquid which conductivity is higher than 5 ¦ÌS/cm, demineralized water should be higher than 20 ¦ÌS/cm. magnetic flowmeter can display Instantaneous flow, total flow, flow velocity, bidirection, etc.
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote

water flow meter, also known as electromagnetic flowmeter or mag meter, is widely used because less obstruction, cost-effective and accurate measurement. liquid flow meter don’t have any moving parts to wear down, reducing the need for maintenance or replacement. water flow meter is calibrated by Mass Method liquid calibration equipment, which is approved by CNAS ISO 17025, which is mutual recognition by ilac-MRA.

Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote

flange connection magnetic flow meter can display Instantaneous flow, total flow, flow velocity. mag flowmeters have function of high and low alarm, empty pipe alarm, exciting alarm and self-diagnosis.
Structure: compact, remote
Size: DN3-DN3000
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote

magnetic flowmeters can display instantaneous flow, total flow, velocity, high and low alarm, empty pipe alarm, self-diagnosis, Three built-in totalizers: forward flow, reverse flow and net flow, liquid flowmeters are ideal choice for conductive liquids
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Size: DN3-DN3000
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic

Q&T series Insertion Magnetic Flowmeter is designed for measurement of the velocity of liquid. It can be installed
in any pipeline of internal diameter from 100 mm(4in)to 3000mm(120in),through a small tapping. The
complete lack of moving parts of this insertion flow sensor is the source of its reliability. There is no
rotor to stop turning in dirty water and there are no bearings to wear out, the converter adopts surface mount technology (SMT), with self-check and self-diagnosis functions

Size: 1/8″-120″
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Q&T series electromagnetic flow meters sensor and transmitter integrity check utilizing fingerprint technology . Verify the installation is correct from day one and Receive timed notifications. Protect your investment in Q&T flow metering.

Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

High-efficiency magnetic flow meter developed based on technologies that were fostered by our long-time amassed experience and performance records, HC, Ti, Tan and PT-IR are optional, mag flow meter is mainly used to measure conductive liquid, liquid flow meter has compact and remote structurer. our magnetic flow meter have been approved CE-LVD, CE-EMC, ATEX, NSF, tec.mag flowmeter is calibrationed 5 points.

Accuracy: ¡À0.5%
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s

Size DN50 to DN300 pipe line
Suitable for all conductive liquids
No moving parts
Near zero pressure drop
Wide range in electrode: SS316, Ti, HC, HB, Ta, Pt
Multi-choice in flange: DIN, GB, ANSI, JIS, EN, etc

Battery operated magnetic flowmeter can be used in process measurement and control, leakage detection, etc.Insertion battery powered mag flow meter usually for large pipe diameter above DN100. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner:PTFE,Neoprene,Hard Rubber,EPDM,FEP,Polyurethane, PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

DC3.6V powered electromagnetic flowmeter satisfy water fee calculation with high accuracy, battery water meter is widely used in applications without power grid, can work with solar power supply. Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard), IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard),1.5W(with DC24V);

24VDC and 220VAC, 3.6V lithium are available for transmitter of magnetic flowmeter. flange, tri-clamp, wafer, thread, insertion are optional in connection. we use mass method, pulse or comparison method to calibrate, each flow meter have calibration certificate together with goods. 5 points are calibrated for magnetic flowmeter. widely used for conductive liquids. electromagnetic flowmeter is composed by magnetic flow meter and pt1000 temeprature sensor, can calibrated on liquid test bench, standard accuracy is ¡À0.5%

Accuracy: ¡À0.5%
Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic

Size DN50 to DN300 pipe line
Suitable for all conductive liquids
No moving parts
Near zero pressure drop
Wide range in electrode: SS316, Ti, HC, HB, Ta, Pt
Multi-choice in flange: DIN, GB, ANSI, JIS, EN, etc

Standard cable length or remote or split electromagnetic BTU meter is 10m, max length is 120m, Pt1000 temerature sensor is configured. Magnetic heat meter is composed by transmitter, sensor and PT1000 temperature sensor, which can monitor flow and energy of hot water and cold water, standard configuration of flange and sensor shell is carbon steel, SS304 and SS316L are optional.
Size: 1/8″-120″
Accuracy: ¡À0.5%
Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote

electromagnetic water meter can be used to measure the volume flow of conductive fluid in pipeline. It is applied in the flow measurement and control in the fields of chemical and petroleum industry, metallurgy industry, water and wastewater, etc.
Electromagnetic water meter is of high reliability without lining in the measuring pipe .
The wide range of the nominal bore is suitable for all the pipe size between DN50 and DN300.

Electromagnetic flowmeter consists of sensors and converters in two parts. The product is based on Faraday’s law of electromagnetic induction
Measure forward and reverse direction flows.
♦ Built-in reference electrodes,no need to connect ground ring.
♦ Dual frequency excitation and stable zero point.
Medium temperature:
Integral type : -20℃~60℃
Remote type(Rubber&Polyurethane liner): -10℃~80℃
Remote type (PTFE&PFA&F46 liner): -10℃~160℃
♦ Integrated verification,diagnostic function and empty pipe detection.
♦ Measure forward and reverse direction flows.

Battery power electromagnetic flowmeter is an ideal solution for nearly any water manager, Battery power magnetic flowmeter eliminates the need for AC/DC power connection. Size: DN10-DN2000; Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V, Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard), 1.5W(with DC24V); Alarm: Upper limit alarm / lower limit alarm

Measuring Range :0~12m/s ;
Conductive Ratio of the Medium :5¦Ìs/cm
Medium Temperature : -10¡æ~55¡æ ;

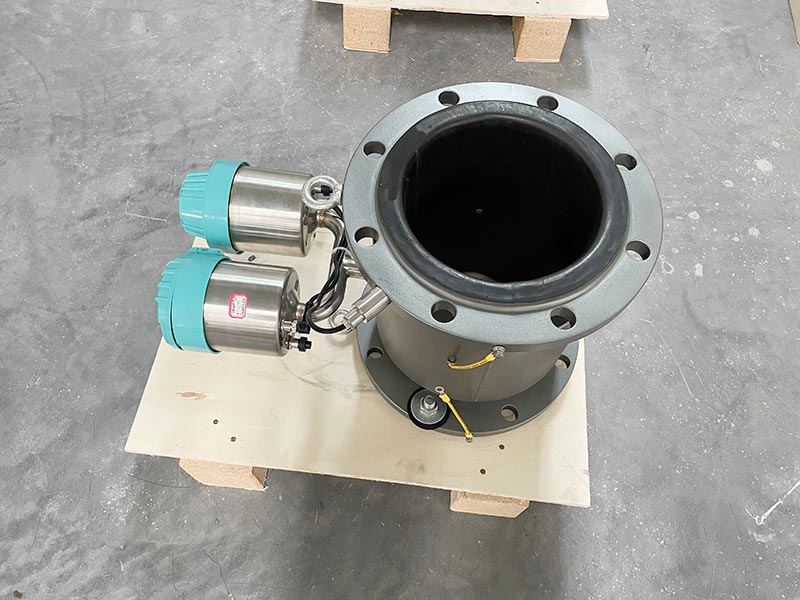

Power Supplied : 3.6V DC in-built Lithium ion battery power supplied , continually working for more than three years.

3.6V battery powered magnetic flowmeter adopt advanced welding technology, battery power mag flowmeter has one year warranty, delivery to 158 countries in the world, get CE, ATEX certificates. Size: DN10-DN2000; Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V, Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard), 1.5W(with DC24V);

Battery operated mag flowmeter is designed for calibration of flow meters under controlled and stable flow conditions.battery operated mag flow meter provide obstruction free flow measurement. Electrode: SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard), 1.5W(with DC24V); Explosion Proof: ATEX
