CE Certificated RS485 River Flow Meter Open Channel Ultrasonic Flow Meter

Pipeline ultraosnic flow meter directly contact the liquid and make the measuring accuracy better than clamp on ultrasonic flowmeter.And installation easy,don’t need calculate the sensor installation distance and cover the coupling agent in the pipe,so this meter can collect the signal very well.

Sincerity Ultrasonic Flow Meter Clamp Wall Mount Water Flow Sensor Ultrassonic Flow Meter For Liquid is an ultrasonic flowmeter used to measure the flow rate of liquids in closed pipes. The transducer is a non-contact, clamp-on type, which will provide the benefits of contamination-free operation and ease of installation. The transit time flowmeter employs two transducers, which act as ultrasonic transmitters and receivers. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

Multi-channel ultrasonic flow meter could be manufactured from 50mm~700mm and mainly be used to measure the flow
and heat of clean liquid which don’t contain large concentration of suspended particles or gas.
RS485 communication
Accuracy:¡À0.5%
Flow velocity:0.1~¡À7m/s
Input:Two-wire PT1000
Supporting single channel and multi-channel

HVAC Ultrasonic Flow Meters is a non-contact instrument, which can measure the flow of medium with large diameter and can also be used for the measurement of medium that is not easy to contact and observe. Its measurement accuracy is very high, and the external clip-type installation can reach the highest accuracy of ¡À1.0%. It is almost not disturbed by various parameters of the measured medium, especially it can solve the strong corrosiveness, non-conductivity, Flow measurement of radioactive and flammable and explosive media
Measuring accuracy: +/-1.0% of FS
Transducer temperature: -30~90¡ãC/-30¡ãC~160¡ãC
Measuring clean liquids Battery-powered,for 12 hours
Communication: RS232

With RS485 Modbus, the solar power ultrasonic open channel flowmeter can be equipped with a communication interface, which is easy to connect with SCADA systems to achieve industrial remote monitoring and control. This Open Channel flow meter measures level, flow rate and total volume of water flowing through weirs, flumes, and channels etc.

Specifications:
Sensor?Level?Range: 0-4.0m; other?level?range?also?available
Blind?zone: 0.20m
Temperature?Compensation: Integral?in?probe
Pressure?Rating: 0.2MPa
Beam?Angle: 8*?(3db)
Cable?Length: 10m?standard?(can?be?extended?to?1000m)
Sensor?Material: ABS,?PVC?or?PTFE?(optional)
Sensor?Protection Class: IP68

Pipeline ultraosnic flow meter directly contact the liquid and make the measuring accuracy better than clamp on ultrasonic flowmeter.And installation easy,don’t need calculate the sensor installation distance and cover the coupling agent in the pipe,so this meter can collect the signal very well.
Szie:DN15~DN6000
Accuracy:¡À1.0 %
Viscosity:0.1~10m/s
Measuring cycle:50mS
Output:4~20mA,Pulse,OCT,RS485
Body material:Standard carbon steel,SS304 and SS316 are optional
Power supply:DC24V and AC220V
Connection way:Flange type
Media temperature :-30~+150¡æ

Liquid portable ultrasonic flowmeter clamp on type 3.6V battery powered can be easily installed, removed and transported. This flowmeter makes them ideal for industrial applications that are already operational or only require occasional flow measurement. In the latter case, the user can use the same clamp on flowmeter to measure flow in multiple locations by unloading and transporting the device for each measurement Measuring accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Built-in rechargeable battery 3.6V Communication: RS232

Wall mounted Ultrasonic Flow meter Data Logger Digital Ultrasonic chemical Liquid Flow Meter is an ultrasonic flowmeter used to measure the flow rate of liquids in closed pipes. The transducer is clamp-on type, which will provide the benefits of contamination-free operation and ease of installation. The transit time flowmeter includes two transducers, which act as ultrasonic transmitters and receivers. The transducer can be installed in a v-type method, where the sound travels through the pipe twice, a w-type method, where the sound travels through the pipe four times. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

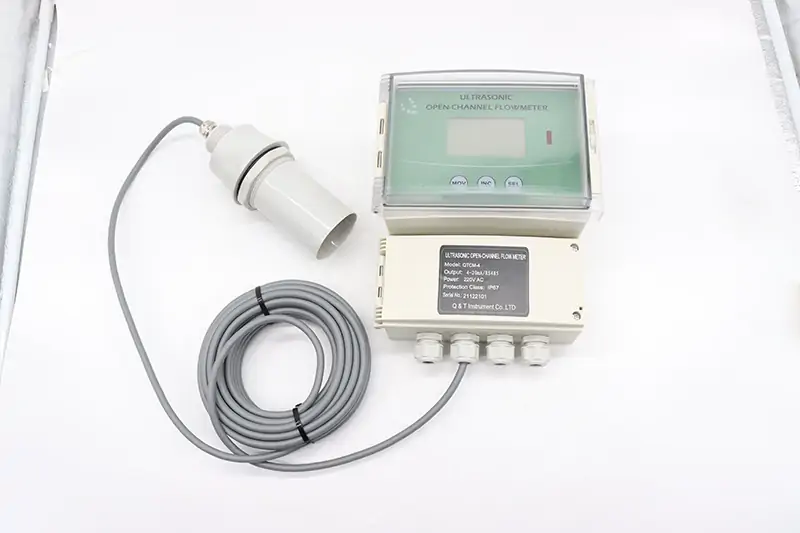

The Q&T Open channel flow meter using transit-time principle, it is an economical ultrasonic flowmeter specifically designed for open channel. Compared with other ultrasonic flow meters on the market, it has the characteristics of high reaction rate, low power consumption and high certainty. At the same time, with non-contact level sensor, it also have the feature of installation simple easy to use, non need water supply shutdown etc.

Specifications:
Display: Backlight?LCD
Flow?Rate?Range: 0.0000~99999L/S?or?m3/h
The?maximum?of Accumulative Flow: 9999999.9?m3/h
Accuracy?of?Change in Level: 1mm?or?0.2%?of?full?span?(whichever?is?greater)
Resolution: 1mm
Analogue?Output: 4-20mA,?corresponding?to?instantaneous?flow
Relays?Output: Standard?2?relay?outputs(Optional?up?to?6?relays)
Serial?Communication: RS485,?MODBUS?-RTU?standard?protocol

Digital Ultrasonic Flow Meter Rotameter Stainless Steel DN15 portable ultrasonic flow meter is an ultrasonic flowmeter used to measure the flow rate of liquids in closed pipes. The transducer is clamp-on type, which will provide the benefits of contamination-free operation and ease of installation. The transit time flowmeter includes two transducers, which act as ultrasonic transmitters and receivers. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

Ultrasonic flow measurement according to the ¡°differential transit time¡± method: This method uses two sensors, set opposite each other in the measuring tube. Each sensor can alternately transmit and receive ultrasonic signals, while simultaneously measuring the signal transit time.
Bi-directional flow measurement
Backlit LCD
Measuring up to 100 times/s
Accuracy:¡À0.5%

Protable Ultrasonic Water Flowmeter Price,Ultrasonic Flow Meter is a portable liquid flow measurement device with a sensor. Protable Ultrasonic Water Flowmeter Price,Ultrasonic Flow Meter adopt transit-time ultrasonic measurement technology for superior accuracy and ease of installation and installation. This easy-to-use flowmeter comes in a rugged, waterproof carrying case for easy transport of the display, sensor, and cables between measurement locations. High accuracy +/-1.0% of FS Transducer temperature: -30~90¡ãC/-30¡ãC~160¡ãC Measuring clean liquids Battery-powered,for 12 hours Communication: RS232

Ultrasonic flowmeters use sound waves to determine the velocity of a fluid flowing in a pipe.
Inline type ultrasonic flow meter can be OEM,such as Body color,Transmitter color,Channle number,Logo display etc.
Flange ultrasonic flow meter could be manufactured from 50mm~700mm and mainly be used to measure the flow and heat of clean liquid which don’t contain large concentration of suspended particles or gas.
Bi-directional flow measurement
Backlit LCD
Measuring up to 100 times/s
Accuracy:¡À0.5%

Ultrasonic Flow meter for applications in clean water and in low conductivity media. Operating principle based on
transit time measurement.
Bi-directional flow measurement over a wide dynamic range.
Applications with conductive or non-conductive liquids for many industrial
No moving parts, no wear, no pressure loss,Maintenance-free

Handheld ultrasonic flow meters are used in conjunction with clamp on transducer to accurately measure liquid flow in closed pipes without the need to insert any mechanical parts into the pipe wall or into the fluid inside.
Using ultrasonic transit time technology, controlled by a microprocessor system, it holds a large amount of data, making it available for pipes of almost any material, from 15mm to 6000mm diameter (depending on the sensor model). This series can measure fluids at various temperatures (up to 160¡ãC).
High accuracy +/-1.0% of FS
Transducer temperature: -30~90¡ãC/-30¡ãC~160¡ãC
Measuring clean liquids
Battery-powered,for 12 hours
Communication: RS232

Inline ultrasonic flow meter support single channel and multi-channel at the same time,when one of channel is abnormal or not connected,it can automatically switch to single channel to working
Ultrasonic flow measurement according to the ¡°differential transit time¡± method: This method uses two sensors, set opposite each other in the measuring tube. Each sensor can alternately transmit and receive ultrasonic signals, while simultaneously measuring the signal transit time.
Input:Two-wire PT1000
Output:4-20mA,Pulse,OCT
Communication:RS485
Szie:DN15~DN6000
Accuracy:¡À1.0 %
Viscosity:0.1~¡À10m/s

QT621 ultrasonic flow meter is a type of portable flow meter, main advantage is that the meter can be easily moved and installed in different pipes and convenient to carry site to site. Portable ultrasonic flow meter adopt the innovative design includes matched precision transducers
and signal processing circuitry to accurately measure the flow of most liquids over a wide range of velocities.

Size: 1¡å~48¡å(25mm~1200mm)
Flow Range:¡À0.01 m/s~ ¡À12 m/s
Accuracy: ¡À1%
Repeatability: 0.2%
Output: 4-20mA, RS485
Power supply: Internal lithium 3000mAh
Transducer: IP68

Ultrasonic flowmeters use sound waves to determine the velocity of a fluid flowing in a pipe.
Inline type ultrasonic flow meter can be OEM,such as Body color,Transmitter color,Channle number,Logo display etc.
Q&T brand ultrasonic flow meter is one kind of economy type flow meter for liquid,multi channle inline ultrasonic flow meter can reach 0.5% accuracy.
2 way input
SS304 body
Flow velicity:0.1~¡À10m/s
Integral display
Accuracy:¡À1.0%
Single channel or multi channel

Measuring Pipe Size DN15-DN6000 Wall Water Mounted Ultrasonic Flow Meter is a high precision no-cut tube measurement method. This special design includes matching sensors for ease of use and is ideal for installation in existing systems Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring single clean liquids Power supply: 24VDC/85VAC-2265AC Storage: SD card optional Heat meter optional

QT621 portable type ultrasonic flow meter is a type of portable instrument for non-invasive, quick flow and energy measurement with clamp-on technology for many types of piping.
Portable ultrasonic flow meter mainly consists of two parts, main display part and transducer part. With 4-20mA and RS485 communication available, QT621 portable ultrasonic flow meter support quickly verify the flow reading of another meter and to data log flow system values over an extended time period.

Size: 1¡å~48¡å(25mm~1200mm)
Flow Range:¡À0.01 m/s~ ¡À12 m/s
Accuracy: ¡À1%
Repeatability: 0.2%
Output: 4-20mA, RS485
Power supply: Internal lithium 3000mAh
Transducer: IP68

For the Doppler Open Channel flow meter, it is a kind of sensor that measures flow velocity and flow rate in natural waters, channels or pipes. Wall-mounted type Doppler Open Channel flow meter consists of a wall-mounted flow calculator and a transducer. The transducer consists of a flow velocity sensor, a water depth sensor of ultrasonic principle, a water depth sensor of pressure principle and a conductivity sensor, which are separately used to measure flow velocity, depth, and conductivity of water in rivers, streams, open channels and pipelines.

Specifications:
Measurement categories: velocity, flow, water depth, water temperature
Level of protection: IP68
Purpose: on-line measurement
Velocity measuring range: the standard is 0.04 m/s ~ 5.00 m/s (the sensor is 20
cm above minimum depth) ;Other velocity range can be customized.
The velocity measurement resolution: 1 mm/s;
Water depth measurements: 0.02 m ~ 10.00 m; Resolution: 2 mm accuracy:
¡À0.5%;
Flow range: 10 L/s ~ 99999999 cubic meters/hour
Power supply: battery, 12 VDC;
Output signal (battery): RS485;
Output signal (external power supply) : 4-20 mA;
4-20 ma output signal content: instantaneous flow rate£»
Cable length between sensor and transmitter: 10 m;
Types of channels subjected to measurement: pipeline, channels, natural stream
and rivers;

Wall mounted clamp on ultrasonic flow meter digital water flow meter ultrasonic flow meter is a portable liquid flow measurement device with a sensor. Wall mounted clamp on ultrasonic flow meter digital water flow meter ultrasonic flow meter proven transit-time ultrasonic measurement technology for superior accuracy and ease of installation and installation. ThisDigital ultrasonic flow meter water flowmeter comes in a rugged, waterproof carrying case for easy transport of the display, sensor, and cables between measurement locations. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring single clean liquids Power supply: 24VDC/85VAC-2265AC Storage: SD card optional Heat meter optional

This Solar power GPRS Open Channel Flow Meter can be used for continuous measuring of municipal rain-water, wastewater, sewage discharge and irrigation water pipelines. This Open Channel flow meter measures level, flow rate and total volume of water flowing through weirs, flumes, and channels etc.

Specifications:
Display: Backlight?LCD
Flow?Rate?Range: 0.0000~99999L/S?or?m3/h
The?maximum?of Accumulative Flow: 9999999.9?m3/h
Accuracy?of?Change in Level: 1mm?or?0.2%?of?full?span?(whichever?is?greater)
Resolution: 1mm
Analogue?Output: 4-20mA,?corresponding?to?instantaneous?flow
Relays?Output: Standard?2?relay?outputs(Optional?up?to?6?relays)
Serial?Communication: RS485,?MODBUS?-RTU?standard?protocol

QT621 handheld type ultrasonic clamp on flow meters are popular used from simple water flow
measurements to energy flow monitoring and automated process control.
Portable ultrasonic flow meters can be easily moved and installed in different pipes and convenient to carry site to site, which is very convenient for users to monitor the data.

Size: 1¡å~48¡å(25mm~1200mm)
Flow Range:¡À0.01 m/s~ ¡À12 m/s
Accuracy: ¡À1%
Repeatability: 0.2%
Output: 4-20mA, RS485
Power supply: Internal lithium 3000mAh
Transducer: IP68

An ultrasonic flow meter utilizes ultrasound to measure the velocity of a fluid and is used in a variety of fluid applications
Pipeline ultraosnic flow meter directly contact the liquid and make the measuring accuracy better than clamp on ultrasonic flowmeter.And installation easy,don’t need calculate the sensor installation distance and cover the coupling agent in the pipe,so this meter can collect the signal very well.
Szie:DN15~DN6000
Accuracy:¡À1.0 %
Viscosity:0.1~¡À10m/s
Output:4~20mA,Pulse,OCT,RS485
Body material:Standard carbon steel,SS304 and SS316 are optional

Professional Cheap Ultrasonic Flowmeter Hydraulic Oil Flow Meter Clamp On Ultrasonic Flow Meter consists of two parts: a transmitter unit and a transducer. Magnetic external clamps on the sensor are easy to install and connect to metal tubing for continuous flow measurement. It is especially suitable for on-site flow measurement of various pressure requirements. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

Handheld Digital Clamp Ultrasonic flow meter, ultrsonic flow meter is a ideal for liquids such as chemical,visous liquids, and sea water. The non-intrusive, clamp-on ultrasonic flow meter fits pipes between 1/2″ to 48″ internal diameter. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Medium: clean liquids,pure water Built-in rechargeable battery 3.6V Measurment unit: Meter, Feet,Cubic Meter.

This Open channel flow meter require accurate measurement of the surface level of a liquid. A flume, channel or structure which has a known characteristic flow per measured head, together with the measured liquid level, accurately define the flow rate through the system.
Applications including Wastewater collection systems,combined sewer systems and outfalls, Wastewater treatment facilities,Irrigation canals and channels, Industrial process and discharges, Stormwater conveyance and outfalls.

Specifications:
Analogue?Output: 4-20mA,?corresponding?to?instantaneous?flow
Relays?Output: Standard?2?relay?outputs(Optional?up?to?6?relays)
Serial?Communication: RS485,?MODBUS?-RTU?standard?protocol
Ambient?Temperature: -40 ~70 Degree C
Measure?Cycle: 1?second?(selectable?2?seconds?)
Power?Supply: DC24V?(+5%)?0.2A;?AC220V?(+20%)?0.1A?;Optional?DC12V

The Solar power GPRS Open Channel Flow Meter has 4-20mA and RS485 signal output, it can be equipped with a communication interface, which is easy to connect with SCADA systems to achieve industrial remote monitoring and control. This Open Channel flow meter measures level, flow rate and total volume of water flowing through weirs, flumes, and channels etc.

Specifications:
Sensor?Level?Range: 0-4.0m; other?level?range?also?available
Blind?zone: 0.20m
Temperature?Compensation: Integral?in?probe
Pressure?Rating: 0.2MPa
Beam?Angle: 8*?(3db)
Cable?Length: 10m?standard?(can?be?extended?to?1000m)
Sensor?Material: ABS,?PVC?or?PTFE?(optional)
Sensor?Protection Class: IP68

This solar power river flow meter can directly display the instant and accumulative flow. This Open Channel Water Meter is based on the flow rate-water level calculation method, and adopts an advanced flow rate measuring instrument and water level measuring instrument to ensure a new intelligent high quality flow system.

Specifications:
Sensor?Level?Range: 0-4.0m; other?level?range?also?available
Blind?zone: 0.20m
Temperature?Compensation: Integral?in?probe
Pressure?Rating: 0.2MPa
Beam?Angle: 8*?(3db)
Cable?Length: 10m?standard?(can?be?extended?to?1000m)
Sensor?Material: ABS,?PVC?or?PTFE?(optional)
Sensor?Protection Class: IP68
Output: 4-20mA, Relays, RS485
