Battery powered magnetic water meter with pulse output

Q&T series easily accessible transmitter offers high flexibility for operation and system integration. The transmitter features access from one side, a remote display, and improved connectivity options. The transmitter does not require a proprietary communication system. It offers full access to process and diagnostic information via numerous, freely combinable I/Os and fieldbuses. Heartbeat Technology ensures compliance and process safety at all times.

Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

3.6V battery powered electromagnetic flow meter is ideal in process measurement and control, survey, leakage detection, etc.Insertion battery mag meters specially installed in any large size pipeline. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner:PTFE,Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B, Hastelloy C, Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Magnetic energy meter is consist of sensor, transmitter and Pt1000 temperature sensor. magnetic heat meter is available for use in pipes ranging in size from DN100 to DN3000, which also can monitor flow and energy of hot water and cold water, standard configuration of flange and sensor shell is carbon steel, SS304 and SS316L are optional.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote

Electromagnetic water meters are often selected because they are obstructionless, cost-effective for aggressive chemicals,slurries,wastewater applications or any dirty liquid which is conductive or water based and provide highly accurate volumetric flow measurement
Standard application products of water treatment industry
Nominal diameter range: DN5~DN2600
Degree of protection can reach IP68
Application suitability – buried or installed underwater
ANSI, DIN, JIS flange are available

Battery power mag flow meter is ideal in process measurement and control, survey, leakage detection, etc. Insertion battery flow meters can be installed in any large size pipeline. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner:PTFE,Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B, Hastelloy C, Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

protection grade of mag flowmeter sensor is IP68 for split type and IP65 for integrated mag flowmeter. QTLD series electromagnetic flow meter represent the state-of-the-art for accurate measurement in water cycle and process applications. This new-generation meter incorporates improvements to the magnetic distribution elements that allow accurate operation throughout all flow regimes.

Size: DN3-DN3000
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

Q&T series Insertion Magnetic Flowmeter is designed for measurement of the velocity of liquid. It can be installed
in any pipeline of internal diameter from 100 mm(4in)to 3000mm(120in),through a small tapping. The
complete lack of moving parts of this insertion flow sensor is the source of its reliability. There is no
rotor to stop turning in dirty water and there are no bearings to wear out, the converter adopts surface mount technology (SMT), with self-check and self-diagnosis functions

Size: 1/8″-120″
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Q&T series electromagnetic flow meter has a backlight and a wide temperature-ranged Chinese LCD display. With fully practical function, visual display, easy operation, it saves troubles for on-site installation operation and maintenance. Q&T series electromagnetic flow meter can be widely used in industrial fields such as petroleum, chemical, metallurgy, water supply and drainage, steel, coal, paper, food, textile, environmental protection and other municipal administration, water conservancy construction field etc.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Q&T Instrument is OEM for European and American clients for
magnetic flow meter. color, logo and company name can be customized. Pulse width of electromagnetic flow meter can be customized, standard cable is 10m, max length is 120m, electromagnetic flow meter is mainly used to measure beverage. liner can be PTFE or rubber, our magnetic flow meter have been approved CE-LVD, CE-EMC, ATEX, NSF, tec. it can mag flowmeter is calibrationed 5 points.

Accuracy: ¡À0.5%
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s

communication of magnetic flow meter is RS485, HART, Profibus DP and PA. Measurement of magnetic flowmeter is independent of fluid density, viscosity, temperature, pressure, and conductivity. the pipe is PVC, so we configure grounding rings to have better grounding to protect the electromagnetic flow meter.

Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

Electromagnetic water meter could be used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy, and other industries.

Stainless still magmeter is mainly used to measure beverage. liner can be PTFE or rubber, waste water flow meter can add pt1000 temeprature sensor to be magnetic btu meter to monitor flow and btu of hot water and cold water, can calibrated on liquid test bench, standard accuracy is ¡À0.5%
Size: 1/8″-120″
Electrode: SUS316L, Hastelloy B, Hastelloy C
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

QTLD magnetic flowmeter is calibrated 5 points, test bench is approved ISO / IEC 17025:2015, standard accuracy is ¡À0.5%, ¡À0.2% accuracy is optional.

water flow meter is widely used because less obstruction, cost-effective and accurate measurement. Magnetic flow meter don’t have any moving parts to wear down, reducing the need for maintenance or replacement.

GSM/GPRS remote monitoring management software system can query, count, analyze and display the water usage of each measuring point in the form of graphs or curves, so that users can conveniently manage the water used in each measuring point.

GSM/GPRS remote monitoring management software system can query, count, analyze and display the water usage of each measuring point in the form of graphs or curves, so that users can conveniently manage the water used in each measuring point.

Magnetic flowmeter battery powered special for the area without AC220V/DC24V power supply, mag flow meter battery powered transfer and monitor data via 4-20mA,Pulse, RS485, GPRS. etc. Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa);
Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional);
Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA;
Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium;
Structure: Integral,remote,submersible,ex-proof;
Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ;
Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ;
Ambient Temperature: -20¡æ~+60¡æ;

Electromagnetic water meter has clear LCD display screen, display instantaneous flow and cumulative flow respectivelyAdvanced excitation technology, brief excitation circuit with stability and reliability.Pioneering fuzzy algorithm technology applies to measurement of electromagnetic flowmeter with the performance of artificial intelligence
Reasonable selection of electrode and lining materials, that is, good corrosion resistance and wear resistance
Full digital processing, strong anti-interference ability, reliable measurement, high precision, flow measurement range up to R400

Electromagnetic water meter is powered by an internal battery. It is suitable for situations where the field grid cannot be reached and the grid is difficult to lay. It is especially suitable for the
monitoring, calculation and settlement of the tap water supply system.
Measuring Range :0~12m/s ;
Conductive Ratio of the Medium :5¦Ìs/cm
Medium Temperature : -10¡æ~55¡æ ;
Power Supplied : 3.6V DC in-built Lithium ion battery power supplied , continually working for more than three years.

Electromagnetic water meters, or magmeters, are comprised of a transmitter and sensor that together to measure flow. The magnetic flow meter¡¯s sensor is placed inline and measures an induced voltage generated by the fluid as it flows through a pipe.
No Moving Parts
RS485 Standard,HART standard is available.
Suitable for Pipes Up to DN300
Pulse, Gprs output
Standard 5 points calibration Included

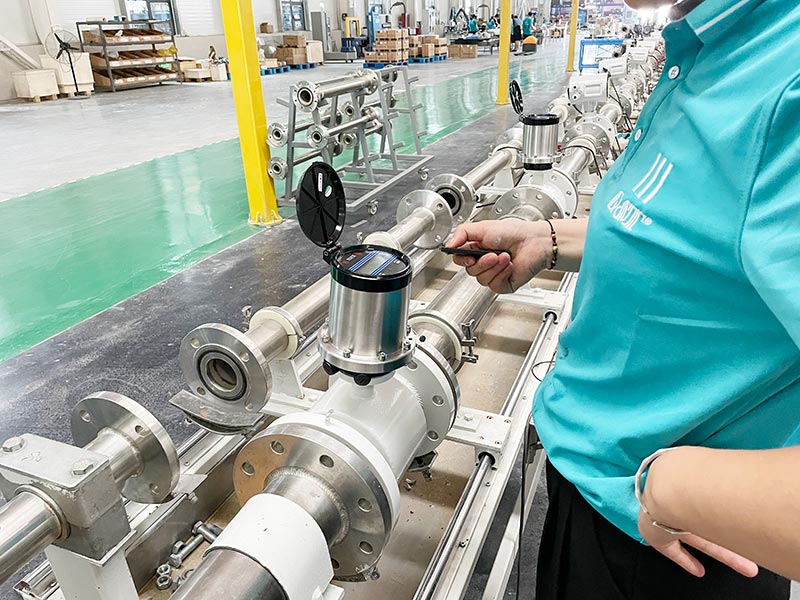

electromagnetic flow meter is calibrated by standard mass method by high accuracy calibration equipment. standard accuracy is ¡À0.5%, ¡À0.2% accuracy is optional.
Electromagnetic flow meter, or magmeter, are comprised of a transmitter and sensor that together measure flow.
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s

QTLD/T magnetic flowmeter is mainly used to measure beverage, like milk, beer, wine, etc. its liner is PFA which approved NSF and FDA, we are OEM for some Europmean and Amercial brands. electromagnetic water meter is widely used because less obstruction, cost-effective and accurate measurement. Magnetic water meter don’t have any moving parts to wear down, reducing the need for maintenance or replacement.

Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote

Electromagnetic flow meter battery powered make IP68 protection, battery powered electromagnetic flow meter could put under water for long time, flow meter could add external DC12-24V power. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM (Optional);

QTLD electromagnetic water meter is packed by wooden case or carbone box with foam to protect flow metes won’t be damaged in transit, we will rich stock, flowmeters will be delivered in 6 days.
water flow meter is widely used because less obstruction, cost-effective and accurate measurement. Magnetic flowmeter don’t have any moving parts to wear down, reducing the need for maintenance or replacement.
Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse

Q&T is manufacturer for flow meters, protection grade of magnetic flow meter sensor is IP68 for remote and IP65 for compact magnetic flow meter, sensor can be submerged in the water for 3m depth or buried underground, standard cable length is 10m, max cable length is 100m, Remote type liquid flow meter is recommended for large size.

Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

The Electromagnetic flow meter has the feature of high accuracy and reliability. This magnetic flow sensor is suitable for measuring the flow of liquids, pastes, and slurries in water, chemical, food, pharmaceutical,mining, and agricultural industries etc. The structure of the digital water flow meter has integral type and remote type.

Specifications:
Place of Origin:Henan, China
Brand Name: Q&T
Model Number: QTLD
Accuracy: 0.5%, optional 0.2%
Signal output: 4~20 mA, pulse
Power supply: 220VAC, 24VDC
Body material: Carbon steel
Liner material: PTFE, FEP, PFA, CR, hard rubber, PU, FLS
Electrode material: SUS316L, HC, HB, Ti, Tan, Pt
Connection: Flange, thread, wafer, tri-clamp, union
Protection grade:IP65 / IP 68(optional)

magnetic flowmeter has a large measurement scale, usually 10:1, and the optional flow scale is wide. electromagnetic flow meter is widely used because less obstruction, cost-effective and accurate measurement. and no other throttle valve components that hinder the fluidity of the liquid. Therefore it is not possible to cause any additional pressure damage when the liquid is.

Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

3.6V battery powered electromagnetic flow meter adopt advanced welding technology, battery meter has one year warranty, delivery to 158 countries in the world, also get CE, ATEX certificates. Size: DN10-DN2000; Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V, Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard), 1.5W(with DC24V);

There are no moving parts and no choke parts in the pipeline, and there is almost no additional pressure loss in the measurement. The measurement result has nothing to do with physical parameters such as velocity distribution, fluid pressure, temperature, density, viscosity, etc.
High-quality ABS, backlit LCD simultaneously displays
instantaneous flow and accumulated flow, instantaneous heat andaccumulated heat, flow rate, time and other data non-contactmeasurement, accurate measurement

Magnetic heat meter standard configuration of flange and sensor shell is carbon steel, SS304 and SS316L are optional.

the electromagnetic flow meter has wide range of nominal diameters (DN3-3000), Independent of pressure, temperature, density and viscosity
mag flowmeter built-in grounding electrodes, it has ii-directional flow measurement. High accuracy 0.2% available, Self-diagnosis function, empty pipe alarm, exciting alarm

Battery powered electromagnetic flow meter satisfy urban water supply to ensure accurate water fee calculation,Battery powered magnetic flow meter is widely used in no power supply region. Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard), IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard),1.5W(with DC24V);
