Atex explosion proof Pt1000 temperature sensor magnetic energy meter

1.Battery powered,three years’ service life, it can connect with GPRS module,achieve remote meter reading;
2.There are 12 months warranty of our products from the date of original delivery, “three guarantees” service (return, replacement, warranty);

3.6V battery powered magnetic flowmeter enjoys ¡À0.5% accuracy, installation should be away from pumps,tees,elbows,valves,etc., mag flow meter front straight pipeline 5D, rear straight pipeline 3D. Size: DN10-DN2000; Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Electromagnetic flowmeter consists of sensors and converters in two parts. The product is based on Faraday’s law of electromagnetic induction
Measure forward and reverse direction flows.
♦ Built-in reference electrodes,no need to connect ground ring.
♦ Dual frequency excitation and stable zero point.
Medium temperature:
Integral type : -20℃~60℃
Remote type(Rubber&Polyurethane liner): -10℃~80℃
Remote type (PTFE&PFA&F46 liner): -10℃~160℃
♦ Integrated verification,diagnostic function and empty pipe detection.
♦ Measure forward and reverse direction flows.

Process connection of inline magnetic flow meter is flange, tri-clamp, wafer, thread, etc. we use mass method, pulse or comparison method to calibrate, each flow meter have calibration certificate together with goods. 5 points are calibrated for magnetic flowmeter. widely used for conductive liquids. electromagnetic flowmeter is composed by magnetic flow meter and pt1000 temeprature sensor, can calibrated on liquid test bench, standard accuracy is ¡À0.5%

Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

Electromagnetic flowmeter is a commonly used pipeline measuring instrument, which can not only provide flow velocity measurement parameters but also output output results. At present, electromagnetic flowmeters have been widely used in flow velocity measurement in my country’s dredging industry..

Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Electromagnetic water meter can be used to measure the volume flow of conductive fluid in a closed pipeline. It is widely applied in the flow measurement and control in the fields of chemical and petroleum industry, metallurgy industry, water and wastewater, agriculture and irrigation, paper making, food and beverage industry and pharmaceutical industry, etc.
Electromagnetic flow meter is used in a variety of industries, water treatment, chemical, food , agriculture, water supply and drainage etc.Providing technical support, choosing flow meters according to different working conditions;

QTLD liquid flow meters are mainly used to measure conductive liquids, waste water flow meter has compact and remote structurer. protection grade of remote type flow sensor is IP68, liquid flow meter can be submerged in the water. mag flowmeter flow meter is calibrated on ¡À0.2% calibration device, so accuracy of electromagnetic flowmeter can be up to ¡À0.2%. the magnetic flow meter is configured 4~20 mA, pulse and RS485 modbus

Accuracy: ¡À0.5%
Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic

Magnetic flow meters, also called mag meters, are widely utilised in a number of industrial field applications because of their reliable flow rate measurements and features like low pressure reduction and maintenance-free operation.
Mag meter is ideal for wastewater applications, or any dirty liquid which is conductive or water based.
Accuracy over a wide flow range can be as good as ± 0.5% of flow rate or better.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.

GSM/GPRS remote monitoring management software system can query, count, analyze and display the water usage of each measuring point in the form of graphs or curves, so that users can conveniently manage the water used in each measuring point.

Electromagnetic flowmeters have been used for continuous flow measurement in industrial applications for many years. They are ideally suitable for liquids with an electrical conductivity greater than 5 μS/cm. In addition to water and waste water, other contaminated liquids are typical areas of application.

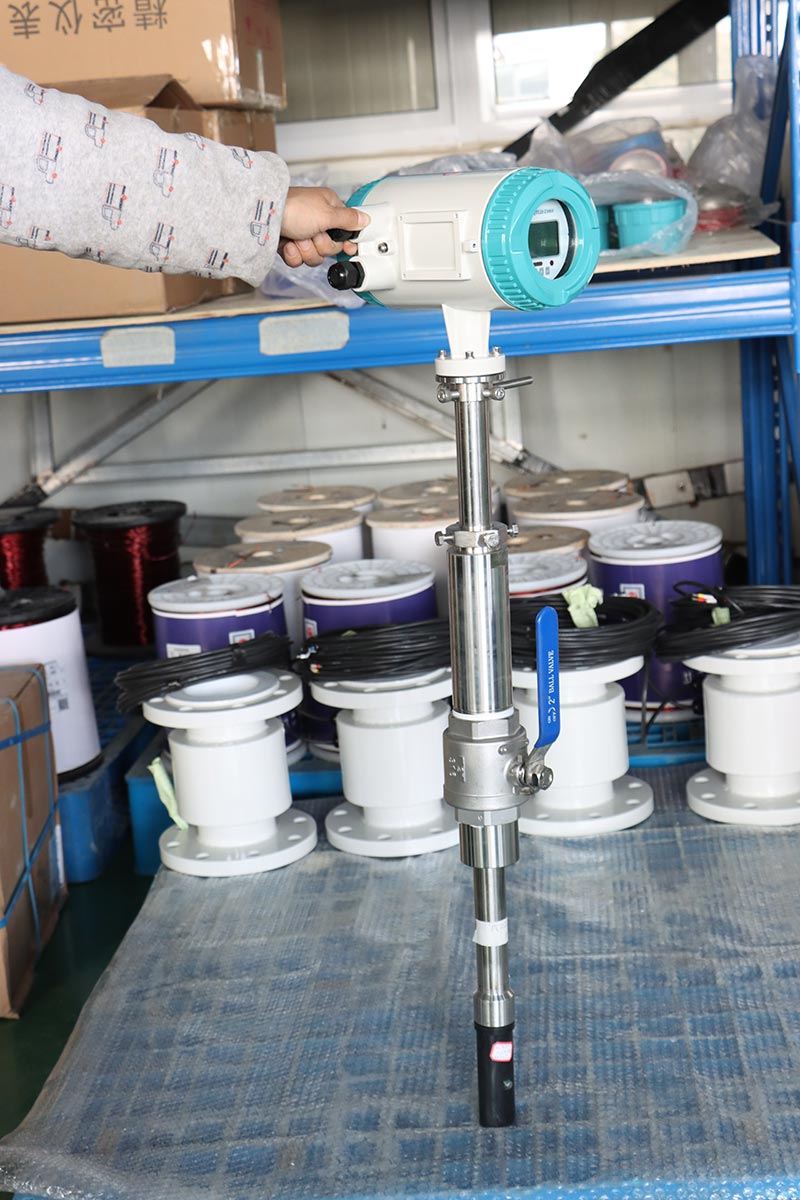

Our product range for flow measurement includes both “Insertion” and “Inline” in different versions. While the magnetic field in “Full Bore” or “Inline” versions extends over the entire pipe cross section, the magnetic field from the immersed sensor in the Insertion version is transmitted only to a part of the medium.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304

Remote transmitter of electromagnetic flowmeter is explosion proof with Atex certificate. Standard confirguration of inline magnetic flowmeter is PTFE, it has been approved NSF and FDA with food grade, QTLD mag flowmeter will be tested in high and low cabinet, temperature is : -20¡æ ~ 60¡æ for 24 hours Signal out inline magnetic flow meter is 4~20 mA, Pulse, RS485 Modbus RTU standard. GPRS, HART, Profibus DP or PA are optional. Various types of instruments are usually used for data monitoring in industrial production, and electromagnetic flowmeter is one of the common instruments

Size: 1/8″-120″
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Measuring tube: SS304

Q&T’s battery magnetic flow meter everyone will have well calibrated before leave factory, battery water meter adopt pulse calibration, with weighing method, guarantee the 0.5% accuracy. Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP,Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium; Ambient Temperature: -20¡æ~+ 60¡æ; Ambient Humidity: 5-100% RH (relative humidity); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA/pulse (optional);

Lithium battery can provide power for themeter up to 6 years (options for rechar-gable battery group with UPS).
lntuitive configuration and accessibility with an easy-to-use Local OperatorInterface.
A variety of electrodes and linings are available for a variety of complex working conditions.
It is unaffected by changes in temperature, density, viscosity, concentration and electrical conductivity.

magnetic flowmeter is packed by wooden case or carbone box with foam to protect flow metes won’t be damaged in transit, magnetic water meter can be delivered within 6 days for DN12-DN300, electromagnetic water meter is widely used because less obstruction, cost-effective and accurate measurement. Magnetic flowmeter don’t have any moving parts to wear down, reducing the need for maintenance or replacement.
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

magmeter can be integrated type and split type, standard cable length is 10m and max cable length is 120m, standard accuracy is 0.5%, 0.2% is optional. Calibration method of electromagnetic flow meter: non-contact measurement method. That is, the external ultrasonic flowmeter is clamped on the pipe of the measured flowmeter. By comparing the cumulative flow error of the two flowmeters.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s

Remote communication with this magnetic flow meter battery can be achieved via a base-station-type radio communication network system.Battery powered mag flowmeter battery enjoy 3-5 years life. Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard), 1.5W(with DC24V); Explosion Proof: ATEX

Electromagnetic flowmeter can measure liquid which conductivity is higher than 5 ¦ÌS/cm, demineralized water should be higher than 20 ¦ÌS/cm. magnetic flowmeter can display Instantaneous flow, total flow, flow velocity, bidirection, etc.
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote

Electromagnetic water meter can realize local indication and output electrical current signal of GPRS which can be used to record, adjust and control.
Various liner materials are available:PTFE, FEP, PFA, F46, Rubber
Wide rang in communication:RS485, Modbus, ,GPRS
IP68 protection class is for remote type

Q&T series electromagnetic flow meters sensor and transmitter integrity check utilizing fingerprint technology . Verify the installation is correct from day one and Receive timed notifications. Protect your investment in Q&T flowmetering. Q&T Series nominal diameter DN3-DN3000. There are many options for sensor liner and electrode materials.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Q&T series electromagnetic flowmeter is suitable for measuring almost all electrically conductive liquids, as well as the flow measurement of mud, paste and mud. The premise is that the measured medium must have at least some minimum conductivity. Temperature, pressure, viscosity and density have no effect on the measurement results.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

3.6V battery powered magnetic flow meter could reach IP68 protection,3.6V battery powered mag flow meter could put under water for long time, flow meter also have external DC12-24V power. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM (Optional);

The Magnetic Flow Meter has bidirectional measuring system and is installed with three totalizers: forward total volume, reverse total volume and total difference; This digital water flow meter can display forward flow and reverse flow volume, and has multiple outputs: current, pulse, digital communication Modbus, HART etc

Specifications:
Accuracy: 0.20%，0.10%
Medium Temperature: -50…200℃
Nominal pressure: 0…4.0MPa
Material : Measuring tube SS316L; Housing: SS304
Process Connection: Flange, Tri-clamp Connection, Thread
Power supply: 24V DC±5% or 220V AC ± 10% 50Hz
Working condition: Ambient temperature: – 20~60℃
Relative humidity: ≤95%
Protection Grade: IP67
Instrument display: mass flow, volume flow, density, temperature

Q&T liquid flow meter including magnetic flow meter, electromagnetic flow meter, magmeter,which is designed to measure various conductive liquids. manufacturer of flow meters and level meters. Founded in 2005, certified ISO 9001:2015
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm

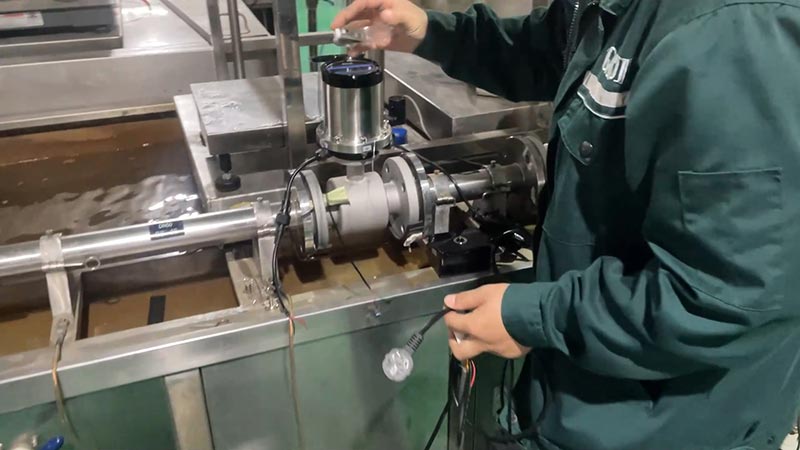

Q&T have 8 sets calibration device for liquids electromagnetic flow meter and 5 sets calibration equipments for gas. our calibration lab has been approved CNAS ISO/IEC 17025:2017, mag flowmeter can be delivered within 6 days for DN3-DN3000.

Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Q&T Instrument are OEM for some European and American clients, we have strick control, like high and low temperature test for electromagnetic flow meter. magmeters is calibrated by Mass Method liquid calibration equipment, which is approved by CNAS ISO 17025, which is mutual recognition by ilac-MRA. inline magnetic flow meter is composed by magnetic flow meter and pt1000 temeprature sensor, can calibrated on liquid test bench, standard accuracy is ¡À0.5%

Size: 1/8″-120″
Electrode: SUS316L, Hastelloy B, Hastelloy C
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

Electromagnetic water meter is used to measure the flow of conductive fluid in watersupply,steel£¬petroleum,chemical industry,electric power£¬industry£¬water conservancyand other departments.

Q&T series of intelligent hygienic electromagnetic flow meter is a high performance, high reliability flow meter for measuring the volumetric flow of conductive liquids and slurries in closed conduits. Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy, Papermaking, water supply and drainage, food, medicine and other industries.

Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

intelligent electromagnetic flowmeter is a new generation of fully intelligent flowmeter developed by our company based on Faraday electromagnetic induction principle. The electromagnetic flowmeter can not only measure the volume flow of conductive liquid, but also measure the volume flow of corrosive liquid such as strong acid and alkali, and even liquid-solid two phase suspension liquid such as mud, pulp and pulp. It is widely used in the fields of petroleum, chemical industry, metallurgy, textile, pharmacy, food and beverage, paper making, electric power, urban water supply and drainage and environmental protection.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.

Q&T series electromagnetic flowmeter is suitable for measuring almost all electrically conductive liquids, as well as the flow measurement of mud, paste and mud. The premise is that the measured medium must have at least some minimum conductivity. Temperature, pressure, viscosity and density have no effect on the measurement results.it’s very economical and practical.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Liquid flow meter is widely used in Sewage Treatment Plant Water Supply project and Steel & Aluminum Industries, Chemical & Fertilizer Industries. Q&T brand electromagnetic water meter has been approved ATEX explosion proof certificate. which can be used any conductivity is higher than 20 ¦ÌS/cm.
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
